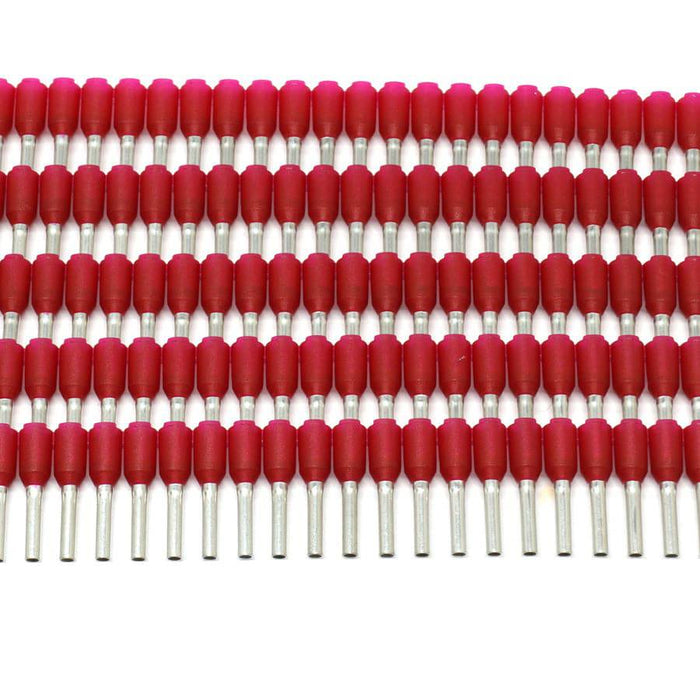

SD10008 - Strips of Ferrules - 18 AWG - Red - 500pcs
Precio original
$18.90
-
Precio original
$18.90
Precio original
$18.90
$18.90
-
$18.90
Precio actual
$18.90
SKU SD10008
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: 30445602
Altech Corp: 2871.0 FID1808R
American Electrical: 1183010 - 1181010
Automation Direct: BM-00603 V30AE000045
Crimp Supply: 13A14003
Eclipse: 701-119
Elecdirect: FER-18-8D
Greenlee: 471/8
LeGrand: 377 63
McMaster-Carr: 7950K92 & 7950K72
Panduit: FSF77-8-D FSD77-8-D
Phoenix Contact: 3200904 - 3200030
TE Connectivity: 966067-9
Thomas Betts: F4024
Tyco AMP: 966 067-9
WAGO: 216-203
Weidmuller: 9019080000 9019420000
Wieland: 06.600.2227.0
ZF: V3AE0045 V30AE000045
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 18 AWG |
| Color: | Red |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 18A |
| L1: | 14.4mm (0.57") |
| L2: | 8.0mm (0.32") |
| D: | 1.8mm (0.07") |
| D1: | 1.4mm (0.05") |
| D2: | 2.8mm (0.11") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: 30445602
Altech Corp: 2871.0 FID1808R
American Electrical: 1183010 - 1181010
Automation Direct: BM-00603 V30AE000045
Crimp Supply: 13A14003
Eclipse: 701-119
Elecdirect: FER-18-8D
Greenlee: 471/8
LeGrand: 377 63
McMaster-Carr: 7950K92 & 7950K72
Panduit: FSF77-8-D FSD77-8-D
Phoenix Contact: 3200904 - 3200030
TE Connectivity: 966067-9
Thomas Betts: F4024
Tyco AMP: 966 067-9
WAGO: 216-203
Weidmuller: 9019080000 9019420000
Wieland: 06.600.2227.0
ZF: V3AE0045 V30AE000045
Documents
Click to view product spec sheet:
