22 & 24 AWG (6mm Pin) Insulated Ferrules - Turquoise

$8.69
SKU AW03406
Quantity Options

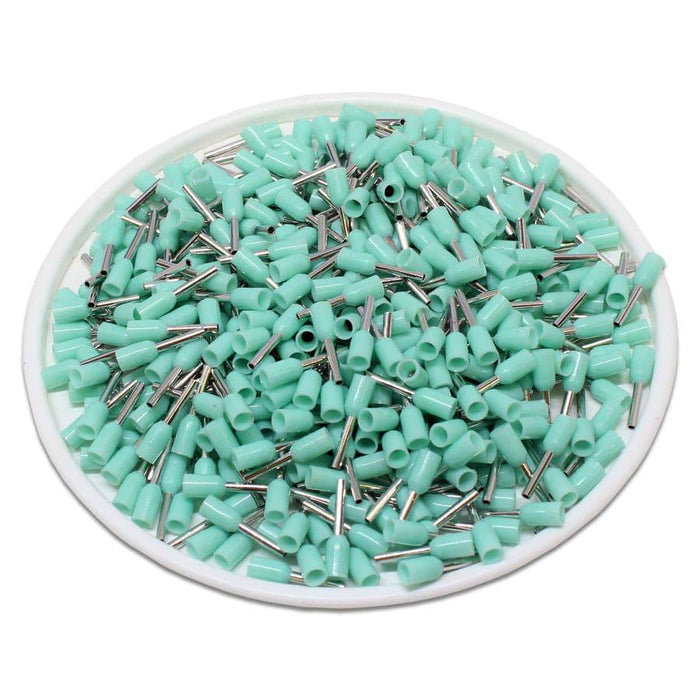

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 22 & 24 AWG
Color: Turquoise
L1: 10.4mm (0.409")
L2: 6.0mm (0.236")
D: 1.15mm (0.045")
D1: 0.85mm (0.033")
D2: 2.0mm (0.079")
UL Approved: Yes
CE Certfied: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 9A

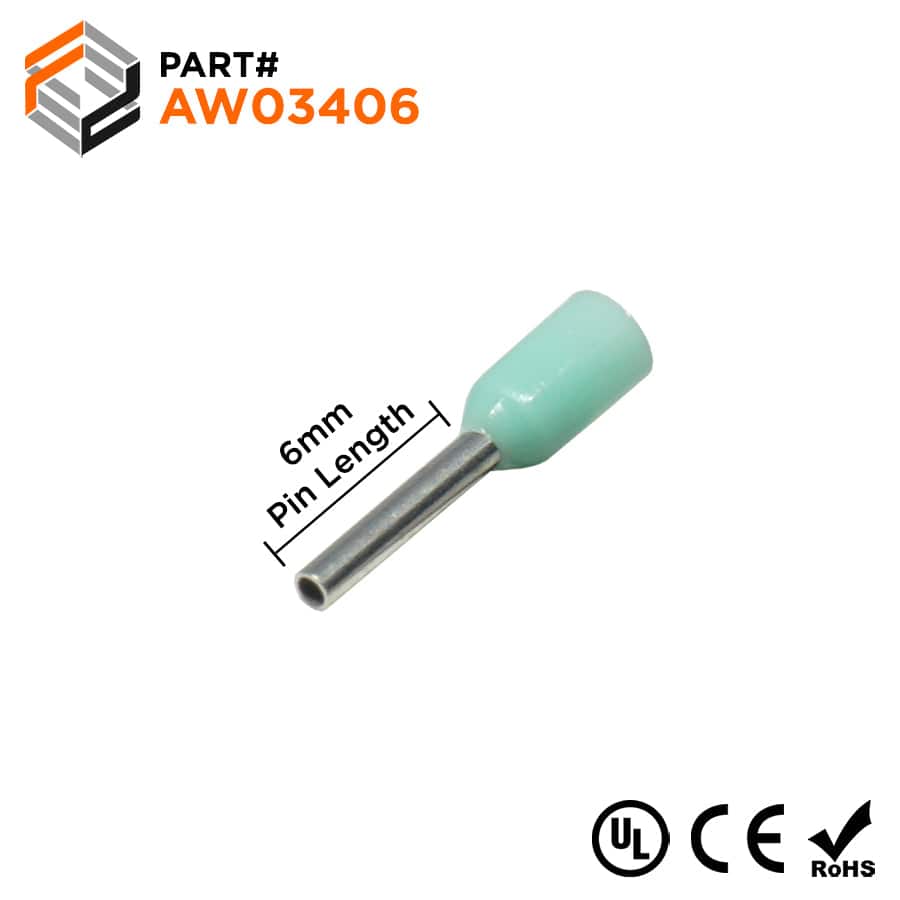

Technical Drawing:


Cross References

ABB: XUSD01818
Altech Corp: 2622.0 FII2206
American Electrical: 1162034 - 1161034
Crimp Supply: 13A11002
Eclipse: 701-026
Greenlee: 168/T
LeGrand: 377 60
Panduit: FSD74-6-D
Phoenix Contact: 3203053
Tyco AMP: 966 066-3
WAGO: 216-322
Weidmuller: 9025750000 9026030000
ZF: V3AE0003
