MPGamma SPN10109 - Push Button Panel, Size: 4" x 4" x 3.5", 304 Stainless Steel, UL Listed
Save 75%
Original price
$137.26
Original price
$137.26
-
Original price
$137.26
Original price
$137.26
Current price
$34.31
$34.31
-
$34.31
Current price
$34.31
SKU SPN10109
Availability:
Low stock
CLOSEOUT - SALES ARE FINAL
Not Eligible For Free Shipping Promotion
WATERTIGHT PUSH BUTTON PANELS
SPN SERIES:
- Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
- Fine external SATIN finish, medium Scotch-Brite type.
- Cover with welded and finished corners with leak-proof clamping screws.
- 22.5mm opening(s) in cover to accommodate push button mounting.
- Sheet metal thickness values of the body and cover from 10/10mm to 12/10mm depending on the size.
- Polyurethane seal with robotized application.

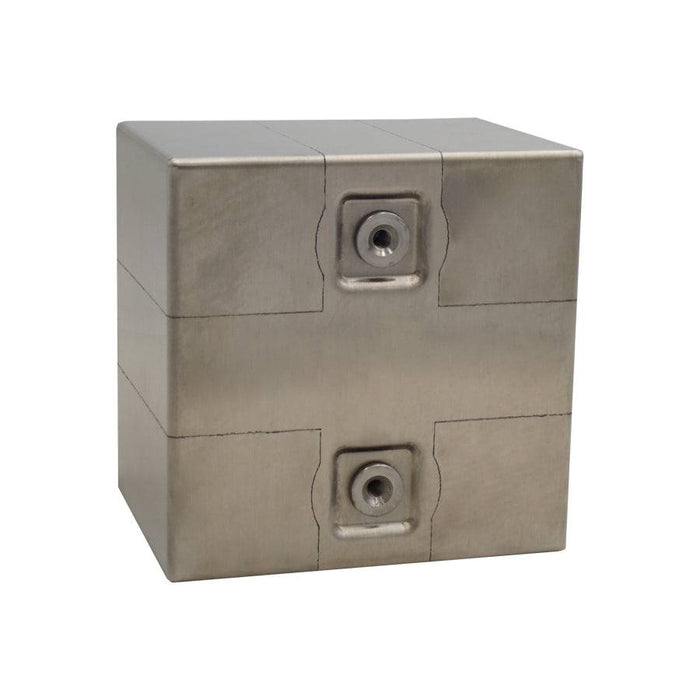

- Rear prearrangement for wall fixing with M5 blind threaded holes.
PLUS ON DEMAND FOR CUSTOMIZATION (Contact Us):
Material: AISI 316L (Wnr 1.4404)
Drilling: as per drawings on body and door.
Dimensions: specials
Seals: silicone

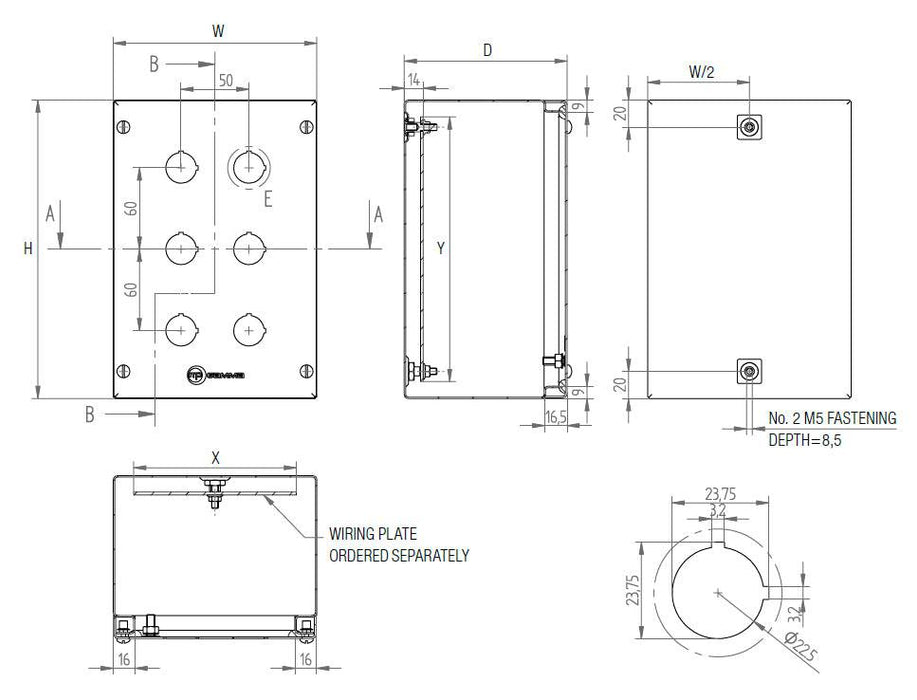

Dimensions & Features:
Nominal Dimensions: 4x4x3.5" (WxHxD)
| W: | 3.94" (100mm) |
| H: | 3.94" (100mm) |
| D: | 3.54" (90mm) |
| X: | --- |
| Y: | --- |
| Points of Closure: | 4 |
| Fixing Points: | 2 |
| Hinges: | 1 |
| Certifications: |  |
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
