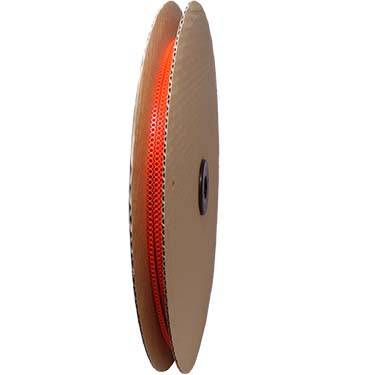

RSW05008 - Minispool of Ferrules - 22 AWG (0.50mm²) - 1000pcs - Orange

Sold out
Original price $35.10 - Original price $35.10
Original price
$35.10
$35.10 - $35.10
Current price $35.10
SKU RSW05008
Availability:
Out of stock
Piece Quantity: 1000 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 22 AWG
Color: Orange
L1: 14.0mm (0.551")
L2: 8.0mm (0.315")
D: 1.3mm (0.051")
D1: 1.0mm (0.039")
D2: 2.6mm (0.102")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 12A

Technical Drawing:



Cross References

Cross Reference Parts:

ABB: XUSG01833
ACI: 107661
Advance Controls Inc. 107661
AlliedElec 70228617
Altech Corp: 2201.0 FII2008
American Electrical: 1182050
AUTOMATION DIRECT: BM-00501
Eclipse: 701-097
Greenlee: 169/O
Phoenix Contact: 3202902 & 3201123
RS Components: 458746
SPC Technology: SCP4474 84N2008
Thomas Betts: F4000
Tyco AMP: 966 066-7
Weidmuller: 09004560000 & 09004270000 & 069070000
ZF: V3AE0006 & V3AE0074 & V30AE000006
