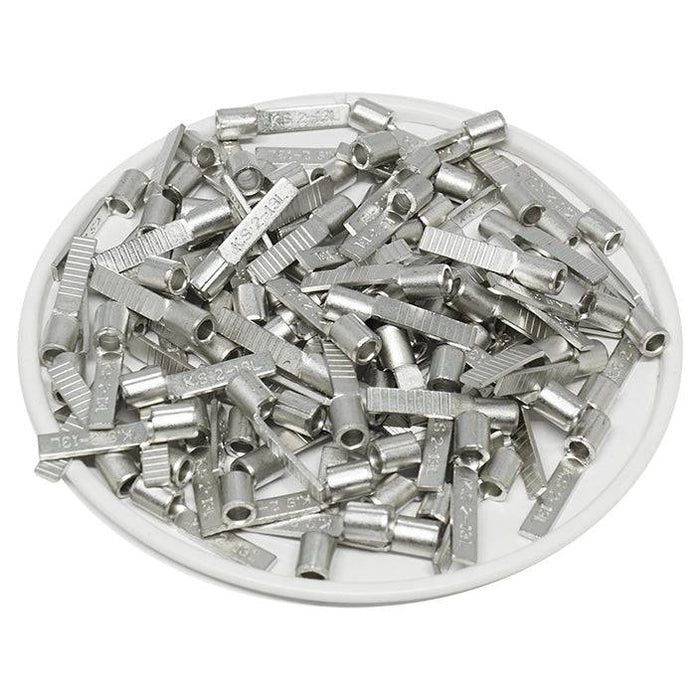

FBU-213L - Non Insulated Flat Blade Terminals - 16-14 AWG
Original price
$10.75
-
Original price
$10.75
Original price
$10.75
$10.75
-
$10.75
Current price
$10.75
SKU FBU-213L
Availability:
in stock, ready to be shipped
A flat blade terminal is a type of wire connection using a flat conductive blade which is inserted into a blade receptacle. They are designed to match interconnect requirements for components such as timers, valves, relays, mechanical switches, and wire-to-wire connections.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| T: | 0.8mm (0.03") |
| L: | 17.8mm (0.70") |
| F: | 13mm (0.51") |
| E: | 4.8mm (0.19") |
| W: | 3.0mm (0.118") |
| D: | 4.1mm (0.16") |
| D1: | 2.3mm (0.09") |
| Temperature Rating: | 105°C |
| Max Electrical Current: | 30AMP |
| Material: | Tin-Plated Copper |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
