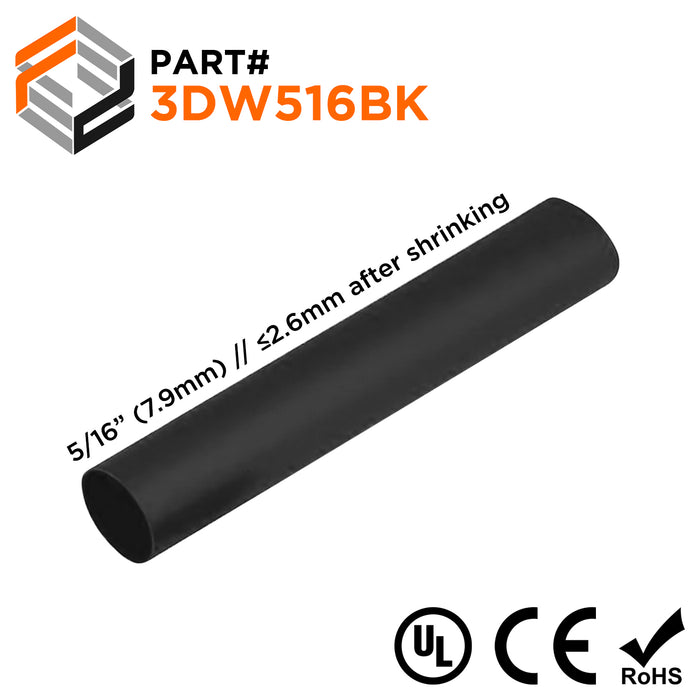

3DW516BK - 5/16" Double Wall Heat Shrink Tubing, 3:1 Shrink Ratio, Black, 4 Foot Strip
Precio original
$1.12
-
Precio original
$1.12
Precio original
$1.12
$1.12
-
$1.12
Precio actual
$1.12
SKU 3DW516BK
Quantity: 4 Foot Strip
Disponibilidad:
en stock, listo para ser enviado
Flexible, thick adhesive lined dual wall heat shrinkable tube is manufactured by co-extrusion of polyolefin and hot-melt adhesive. Used to protect bundles wires and metal tubes against water and moisture.
Dimensions & Features:
| Size (Before Shrinking): | 5/16" (7.9mm) |
| Size (After Shrinking): | ≤2.6mm |
| Shrink Ratio: | 3:1 |
| Material: | Flexible Polyolefin |
| Operating Temperature: | -67°F to 275°F (-55°C to 135°C) |
| Voltage Rating: | 2500V |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
