12 to 10 AWG 3-Way Splice Connectors, #8 Stud, Heat Shrinkable Nylon, 10 Pieces - 3W5BH
Ahorre 54%
Precio original
$10.53
Precio original
$10.53
-
Precio original
$10.53
Precio original
$10.53
Precio actual
$4.82
$4.82
-
$4.82
Precio actual
$4.82
SKU 3W5BH
Disponibilidad:
en stock, listo para ser enviado

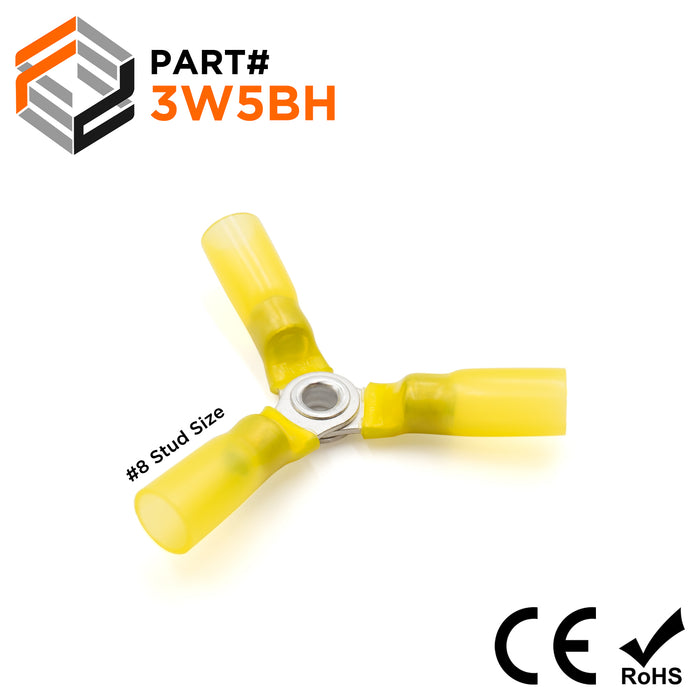

3-WAY CONNECTOR TERMINAL SPLICES
Heat Shrinkable 3-Way Connectors (also known as Terminal Splices) securely connect three wires with one terminal. Constructed of three ring terminals riveted together through the stud holes. The nylon insulation prevents incidental metal to metal contact that can cause shorts. Requires one crimp per wire.
DIMENSIONS & FEATURES:
| Wire Range: | 12 to 10 AWG |
| Color: | Yellow |
| E: | 0.925" (23.5mm) |
| F: | 0.413" (10.5mm) |
| D1: | 0.134" (3.4mm) |
| D2: | 0.169" (4.3mm) |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Heat Shrink Nylon |
| Stud Size: | #8 Stud |
| Shrink Temperature: | 150°C |
| Voltage Rating: | 600 Volts |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
