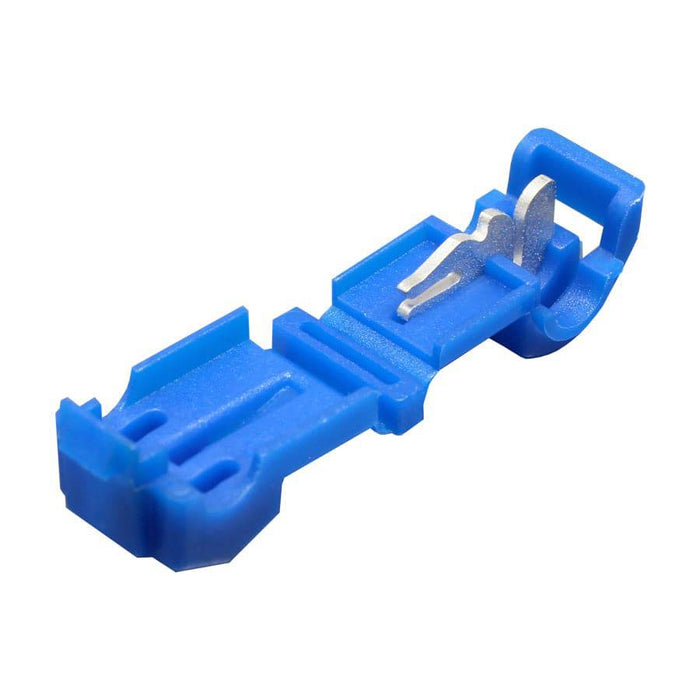

878106 - 18 to 14 AWG Quick Splice Wire Connectors, 100 Pieces
Precio original
$11.90
-
Precio original
$11.90
Precio original
$11.90
$11.90
-
$11.90
Precio actual
$11.90
SKU 878106
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
Quick splice connectors are a fast and easy way to splice into an existing wire. No stripping of the wires is necessary. Simply insert both wires into the splice, squeeze down on the metal insert with pliers, and close the cap
Dimensions & Features:
None
Dimensions & Features:
| Wire Size: | 18-14AWG |
| Color: | Blue |
| L: | 37mm (1.45") |
| W: | 9.8mm (0.38") |
| Terminal Material: | Brass |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 30AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Click here to check out our YouTube channel:
