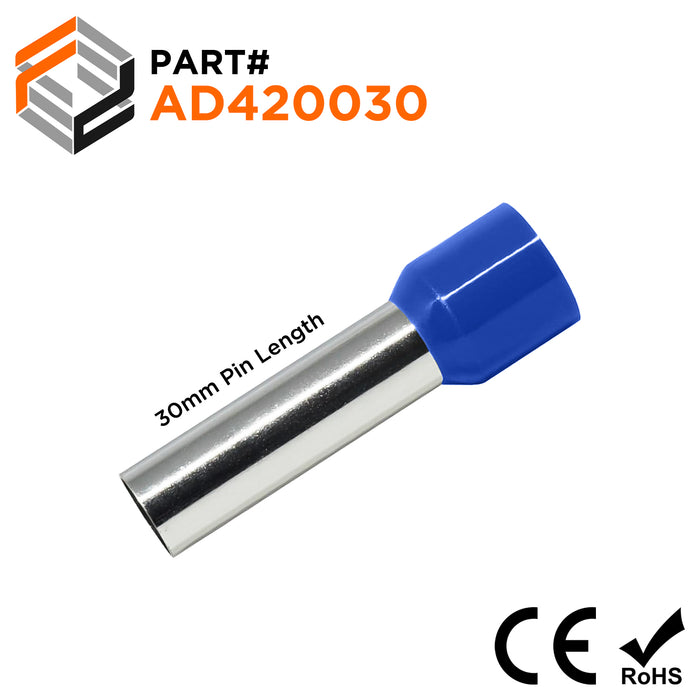

AD420030 - 1 AWG (Small Diameter) Insulated Wire Ferrules, 30mm Pin, Blue, 50 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | True 1 AWG |
Color: | Blue |
L1: | 46mm (1.81") |
L2: | 30mm (1.18") |
D: | 9.2mm (0.36") |
D1: | 8.2mm (0.32") |
D2: | 12.3mm (0.48") |
Material: | Tin Plated Copper |
UL Approved: | No |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Max Electrical Rating: | 105°C - 600 Volts |
Max Electrical Current: | 195A |
Product Drawing:
Cross References
Cross Reference Parts:
None
