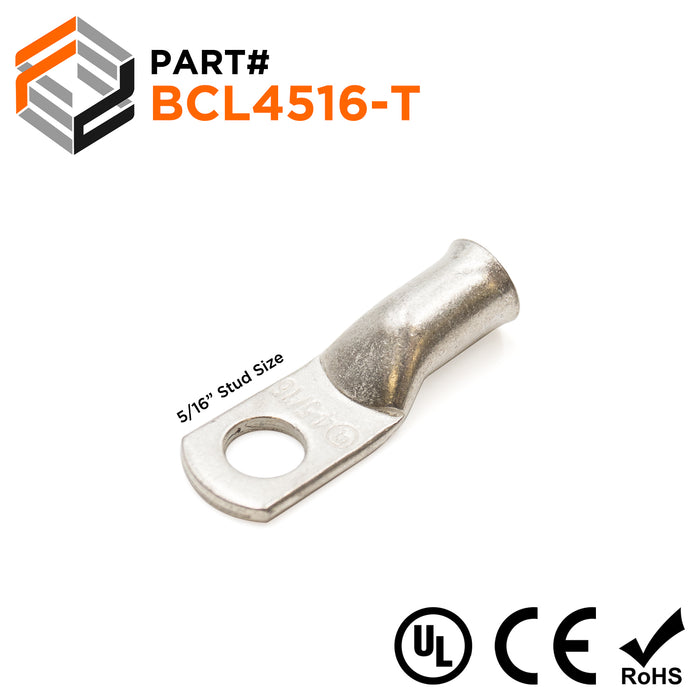

4 AWG Battery Cable Lugs, Tin Plated Copper, Terminal Lugs, 5/16" Stud, 1 Piece - BCL4516-T
Precio original
$0.88
-
Precio original
$0.88
Precio original
$0.88
$0.88
-
$0.88
Precio actual
$0.88
SKU BCL4516-T
Disponibilidad:
en stock, listo para ser enviado
TIN PLATED COPPER BATTERY CABLE LUGS
Our Tin Plated Copper Lugs are suitable for use with a variety of wire types, such as battery and welding cable. Made from 100% pure copper for superior conductivity. Closed-type Flared ends for easy wire insertion that are crimpable and solderable.
The tin plated coating is a corrosion-resistant metal that protects the copper lug from corrosion, especially in humid or corrosive environments
- 100% Pure Copper (with Tin Plating) ✓
- Thick & Durable ✓
- UL Approved ✓
- RoHS & REACH Compliant ✓
- CE Certified ✓
DIMENSIONS & FEATURES:
| Wire Size: | 4 AWG |
| L: | 38.9mm (1.53") |
| L1: | 9.9mm (0.39") |
| D: | 13.8mm (0.54") |
| D1: | 9.1mm (0.36") |
| D2: | 7.1mm (0.26") |
| B: | 13.5mm (0.53") |
| E: | 8.1mm (0.32") |
| F: | 2.1mm (0.08") |
| Terminal Material: | Tin Plated Copper |
| Stud Size: | 5/16" |
| Temperature Rating: |
90°C |
| Voltage Rating: | 35KV |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
