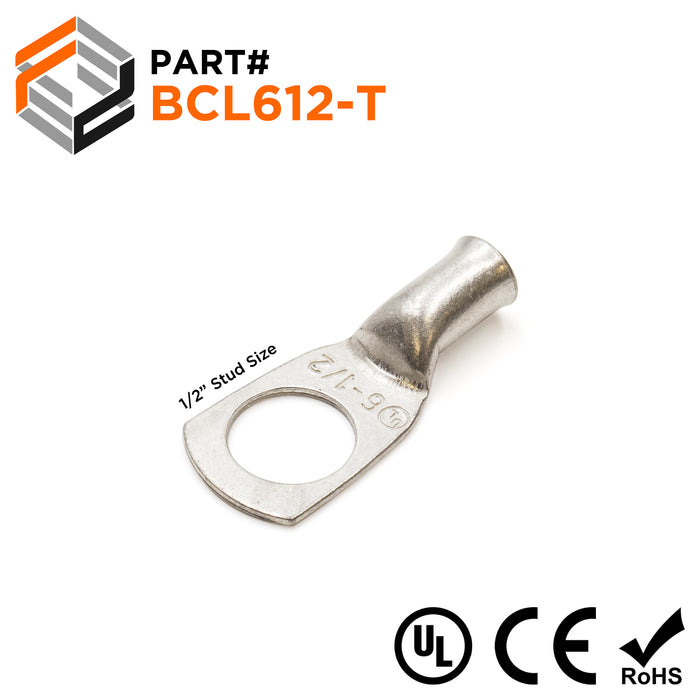

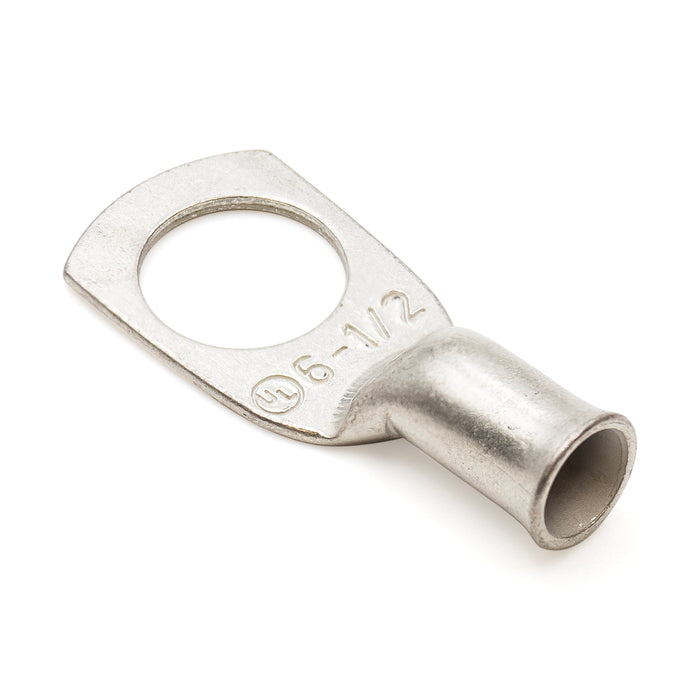

6 AWG Battery Cable Lugs, Tin Plated Copper, Terminal Lugs, 1/2" Stud, 1 Piece - BCL612-T

Precio original $0.69 - Precio original $0.69
Precio original
$0.69
$0.69 - $0.69
Precio actual $0.69
SKU BCL612-T
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece

COPPER BATTERY CABLE LUGS

Our Copper Lugs are suitable for use with a variety of wire types, such as battery and welding cable. Made from 100% pure copper for superior conductivity. Closed-type Flared ends for easy wire insertion that are crimpable and solderable.

  • 100% Pure Copper
  • Thick & Durable
  • UL Approved
  • RoHS & REACH Compliant
  • CE Certified

DIMENSIONS & FEATURES:

Wire Size: 6 AWG
L: 40.1mm (1.57")
L1: 9.7mm (0.38")
D: 17.4mm (0.68")
D1: 8.0mm (0.31")
D2: 6.0mm (0.23")
B: 12.3mm (0.48")
E: 13mm (0.51")
F: 1.2mm (0.05")
Terminal Material: Copper
Stud Size: 1/2"
Temperature Rating: 90°C
Voltage Rating: 35KV
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:



COMPARE TO THESE PARTS:
