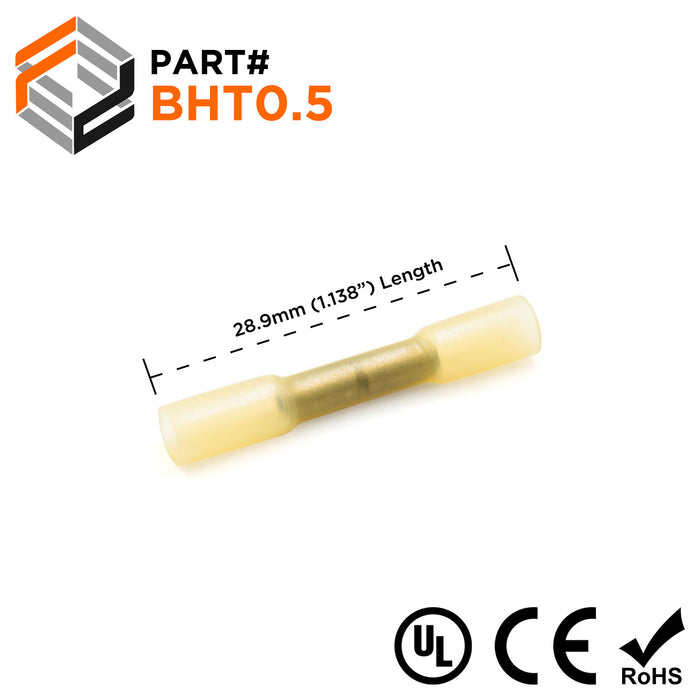

26 to 12 AWG Heat Shrink Butt Connectors, Yellow, Polyethylene, 25 Pieces - BHT0.5
Precio original
$2.19
-
Precio original
$2.19
Precio original
$2.19
$2.19
-
$2.19
Precio actual
$2.19
SKU BHT0.5
Disponibilidad:
en stock, listo para ser enviado
HEAT SHRINKABLE BUTT CONNECTORS
Heat shrink butt connectors are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.
DIMENSIONS & FEATURES:
| Wire Size: | 26 to 22 AWG |
| Color: | Yellow |
| L: | 28.9mm (1.138") |
| D2: |
1.3mm (0.051") |
| Terminal Material: | Tin Plated Copper |
| Insulation: | Polyethylene |
| Operating Temperature: |
(-40°C to 105°C) |
| Max Electrical Rating: | 600 Volts |
| Max Electrical Current: | 9 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
