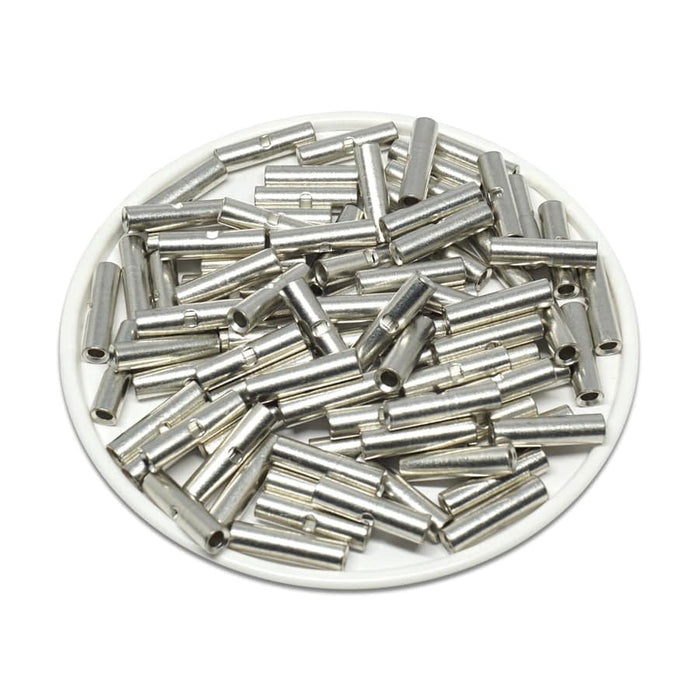

16-14 AWG Non Insulated Butt Splice Connectors, 9/16" Length, UL Approved, 100 Pieces - BNT2

Precio original $11.84 - Precio original $11.84
Precio original
$11.84
$11.84 - $11.84
Precio actual $11.84
SKU BNT2
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

NON INSULATED BUTT SPLICE CONNECTORS

Non Insulated butt splice connectors protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively. For use with copper wires only.


Dimensions & Features:

Wire Size: 16-14 AWG
L: 15mm (0.59")
D:
3.9mm (0.15")
D1: 2.3mm (0.09")
Barrel: Seamless
Configuration: Straight
Material: Tin Plated Copper
Max Electrical Current: 30 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:


Cross References

Cross Reference Parts:
3M: M14BCX
Burndy: YSV14
Elecdirect: B7B
Panduit: BS14-C
Thomas Betts: 2B-14
Tyco AMP: 31819
Weidmuller: 1493010000

Documents

Click to view product spec sheet:
