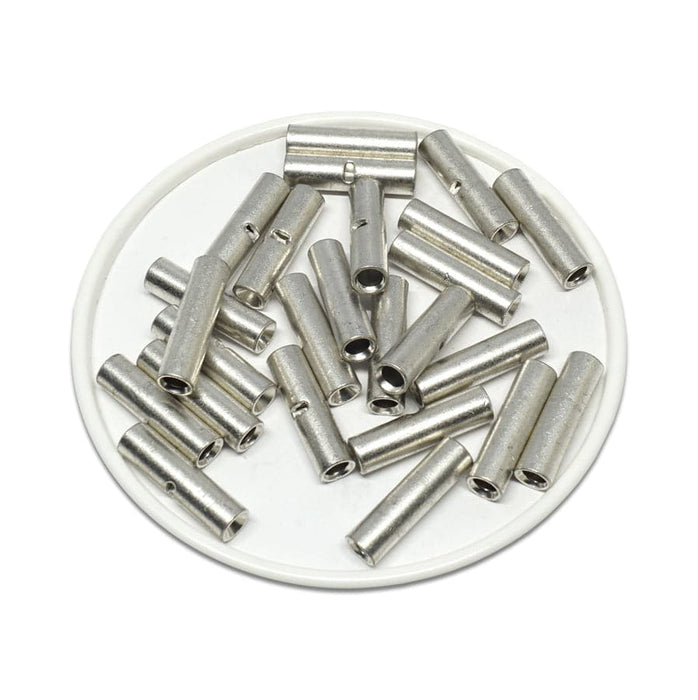

BNT2CD1 - 16-14 to 22-18AWG Non Insulated Step Down Butt Connector
Precio original
$0.00
-
Precio original
$15.76
Precio original
$15.76
$0.00
-
$15.76
Precio actual
$15.76
SKU BNT2CD1
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
en stock, listo para ser enviado
Non insulated step down butt connectors are used to terminate or mate two wires of different size. They offer the following advantages: reliable wire termination due to uniform wall thickness all along the connector and clearly visible color-coding stripe on connector enables the user to quickly identify the connector's size..
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG to 22-18 AWG |
| L: | 15mm (0.59") |
| D: | 3.9mm (0.15") |
| D1: |
1.7mm (0.06") |
| D2: | 2.3mm (0.09") |
| Material: | Tin-Plated Copper |
| Configuration: | Straight |
| Maximum Electrical Rating: | 75o(167oF) - 600 Volts |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
