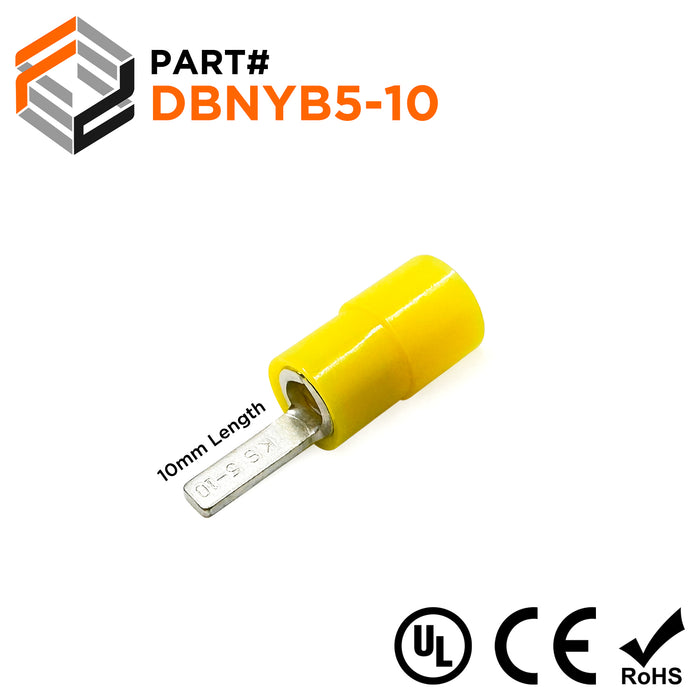

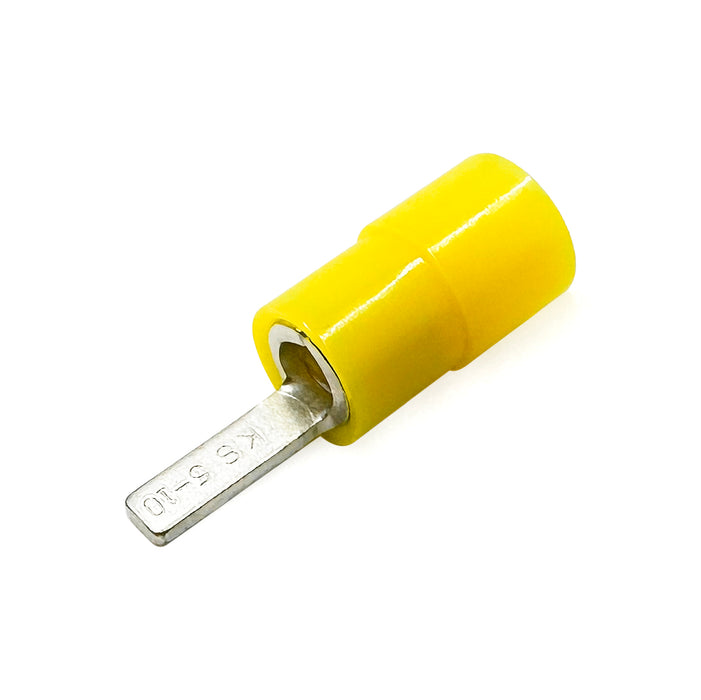

DBNYB5-10 - Nylon Insulated Flat Blade Terminal - 12-10AWG
Precio original
$11.48
-
Precio original
$11.48
Precio original
$11.48
$11.48
-
$11.48
Precio actual
$11.48
SKU DBNYB5-10
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as:
Timers
Motors
Valves
Relays
Mechanical Switches
Wire to Wire Harnesses
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 12-10AWG |
| Insulation: | Nylon |
| Color: | Yellow |
| Type: | Butted Seam |
| Max Electrical Rating: | 105oC |
| Max Electrical Voltage: | 600 Volts |
| T: | 1.0mm (0.04") |
| L: | 23.0mm (0.91") |
| F: | 10.0mm (0.39") |
| E: | 13.0mm (0.51") |
| W: | 2.8mm (0.11") |
| D: | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| UL Recognized: | Yes |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
