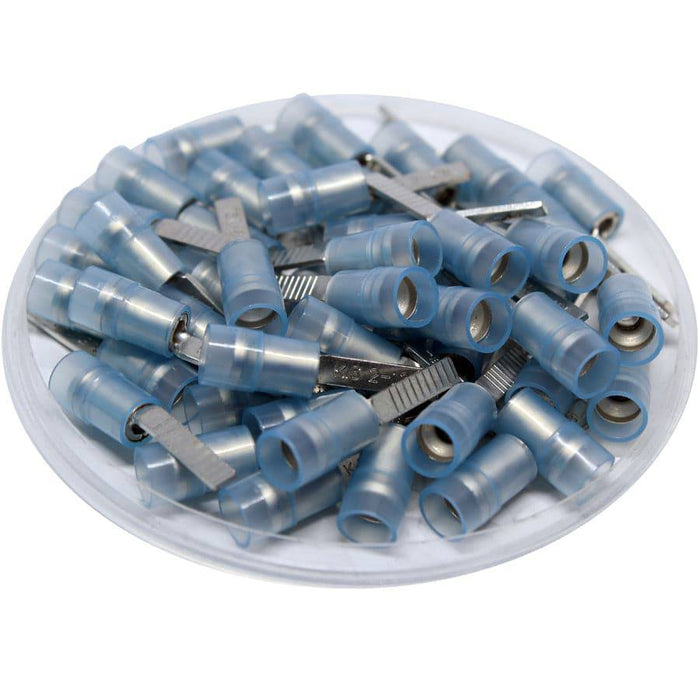

DBNYDL2-13 - Nylon Insulated Flat Blade Terminal - Double Crimp - 16-14 AWG - Blue
Precio original
$13.20
-
Precio original
$13.20
Precio original
$13.20
$13.20
-
$13.20
Precio actual
$13.20
SKU DBNYDL2-13
Disponibilidad:
en stock, listo para ser enviado
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 16-14AWG |
| Insulation: | Nylon |
| Color: | Blue |
| Seam: | Butted |
| Maximum Rating: | 600 Volts - 105oC |
| Max Electrical Rating: | 30AMP |
| T: | 0.8mm (0.03") |
| L: | 23.8mm (0.94") |
| F: | 13.0mm (0.51") |
| E: | 11.0mm (0.43") |
| W: | 3.0mm (0.12") |
| D: | 4.5mm (0.18") |
| D1: | 2.3mm (0.09") |
| UL Recognized: | Yes |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
