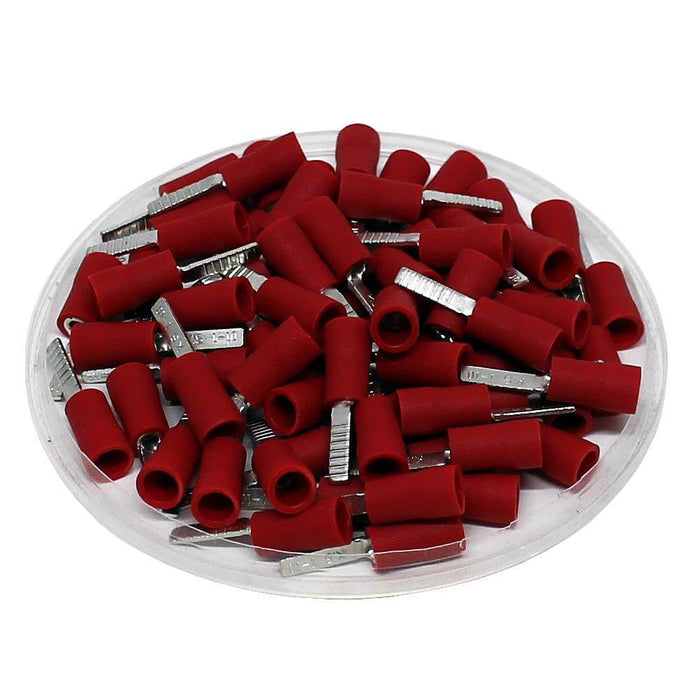

22 to 16 AWG Vinyl Insulated Flat Blade Terminals, Butted Seam, UL Approved, 100 Pieces - DBV1-10
Precio original
$6.69
-
Precio original
$6.69
Precio original
$6.69
$6.69
-
$6.69
Precio actual
$6.69
SKU DBV1-10
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
VINYL INSULATED FLAT BLADE TERMINALS
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as:
- Timers
- Motors
- Valves
- Relays
- Mechanical Switches
- Wire to Wire Harnesses
Dimensions & Features:
| Wire Range: | 22-16 AWG | |
| Terminal Material: | Tin-Plated Copper | |
| Insulation: | Vinyl | |
| Color: | Red | |
| Seam: | Butted | |
| Max Electrical Rating: | 105oC | |
| Max Electrical Voltage: | 600 Volts | |
| Max Electrical Current: | 18AMP | |
| T: | 0.7mm (0.03") | |
| L: | 19.8mm (0.78") | |
| F: | 10.0mm (0.39") | |
| E: | 10.0mm (0.39") | |
| W: | 2.3mm (0.09") | |
| D: | 4.0mm (0.11") | |
| D1: | 1.7mm (0.07") | |
| UL Recognized: | Yes | |
| RoHS Compliant: | Yes | |
| CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
