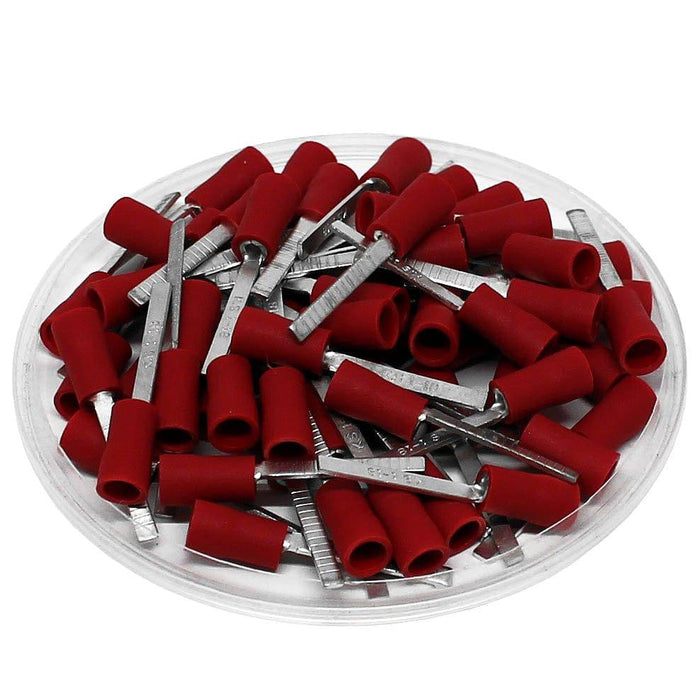

22 to 16 AWG Vinyl Insulated Flat Blade Terminals, Butted Seam, UL Approved, 100 Pieces - DBV1-18

Precio original $8.57 - Precio original $8.57
Precio original
$8.57
$8.57 - $8.57
Precio actual $8.57
SKU DBV1-18
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
true

VINYL INSULATED FLAT BLADE TERMINALS

A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as:

  • Timers
  • Motors
  • Valves
  • Relays
  • Mechanical Switches
  • Wire to Wire Harnesses


Dimensions & Features:

Wire Range: 22-16 AWG
Terminal Material: Tin-Plated Copper
Insulation: Vinyl
Color: Red
Seam: Butted
Max Electrical Rating: 105oC
Max Electrical Voltage: 600 Volts
Max Electrical Current: 18AMP
T: 0.7mm (0.03")
L: 27.8mm (1.09")
F: 18.0mm (0.71")
E: 10.0mm (0.39")
W: 3.0mm (0.12")
D: 4.0mm (0.11")
D1: 1.7mm (0.07")
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes


Product Drawing:



Cross References


Cross Reference Parts:
Cembre: RVF-BL16-3/32
