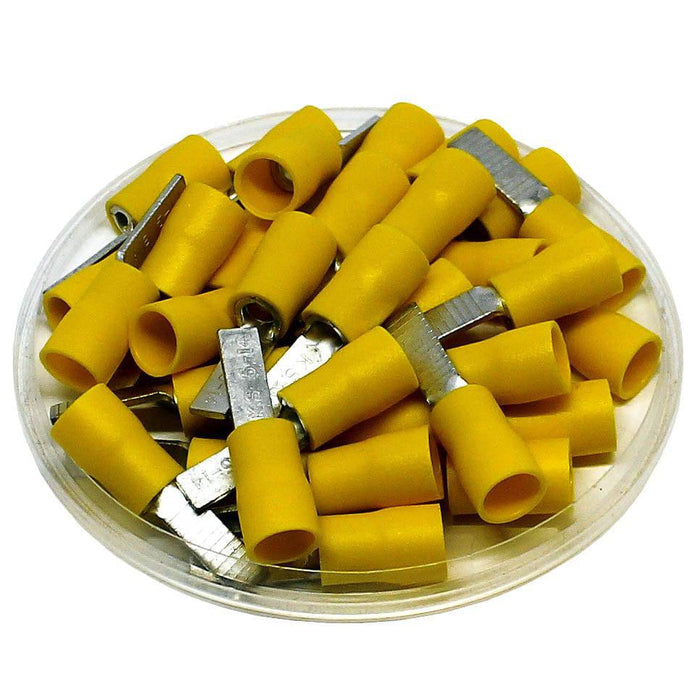

12 to 10 AWG Vinyl Insulated Flat Blade Terminals, Butted Seam, UL Approved, 100 Pieces - DBV5-14
Precio original
$15.02
-
Precio original
$15.02
Precio original
$15.02
$15.02
-
$15.02
Precio actual
$15.02
SKU DBV5-14
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
VINYL INSULATED FLAT BLADE TERMINALS
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as:
- Timers
- Motors
- Valves
- Relays
- Mechanical Switches
- Wire to Wire Harnesses
Dimensions & Features:
| Wire Range: | 12-10 AWG | |
| Terminal Material: | Tin-Plated Copper | |
| Insulation: | Vinyl | |
| Color: | Yellow | |
| Seam: | Butted | |
| Max Electrical Rating: | 105oC | |
| Max Electrical Voltage: | 600 Volts | |
| Max Electrical Current: | 50AMP | |
| T: | 1.0mm (0.03") | |
| L: | 27.0mm (1.06") | |
| F: | 14.0mm (0.55") | |
| E: | 13.0mm (0.51") | |
| W: | 4.5mm (0.18") | |
| D: | 6.4mm (0.25") | |
| D1: | 3.4mm (0.13") | |
| UL Recognized: | Yes | |
| RoHS Compliant: | Yes | |
| CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
Cembre: YVF-BL12
