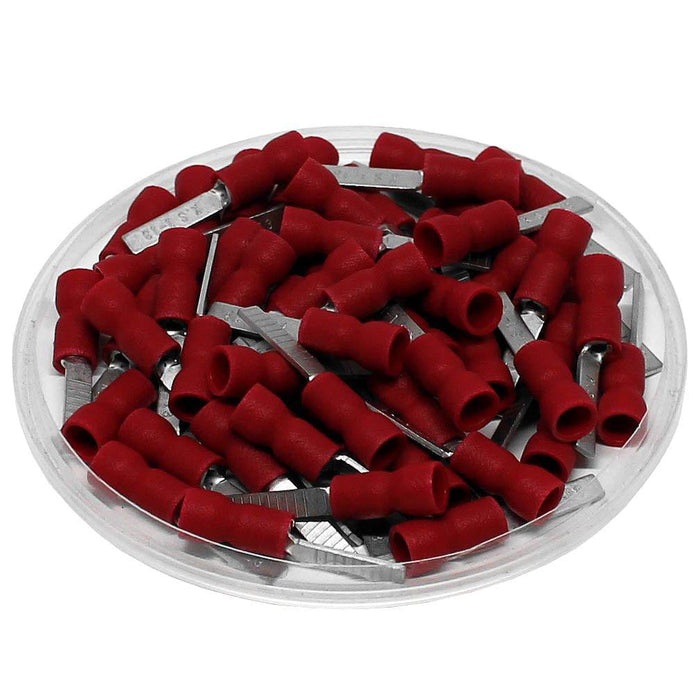

22 to 16 AWG Vinyl Insulated Easy Entry Flat Blade Terminals, Butted Seam, 100 Pieces - DBVE1-13
Precio original
$7.68
-
Precio original
$7.68
Precio original
$7.68
$7.68
-
$7.68
Precio actual
$7.68
SKU DBVE1-13
Disponibilidad:
en stock, listo para ser enviado
VINYL INSULATED FLAT BLADE TERMINALS
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as:
- Timers
- Motors
- Valves
- Relays
- Mechanical Switches
- Wire to Wire Harnesses
Dimensions & Features:
| Wire Range: | 22-16 AWG |
| Terminal Material: | Tin-Plated Copper |
| Seam: | Butted |
| Insulation: | Vinyl |
| Color: | Red |
| Max Electrical Rating: | 105oC |
| Max Electrical Voltage: | 600 Volts |
| Max Electrical Current: | 18AMP |
| T: | 0.7mm (0.03") |
| L: | 24.0mm (0.98") |
| F: | 13.0mm (0.51") |
| E: | 11.2mm (0.44") |
| W: | 3.0mm (0.12") |
| D: | 4.0mm (0.16") |
| D1: | 1.7mm (0.07") |
| UL Recognized: | Yes |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
