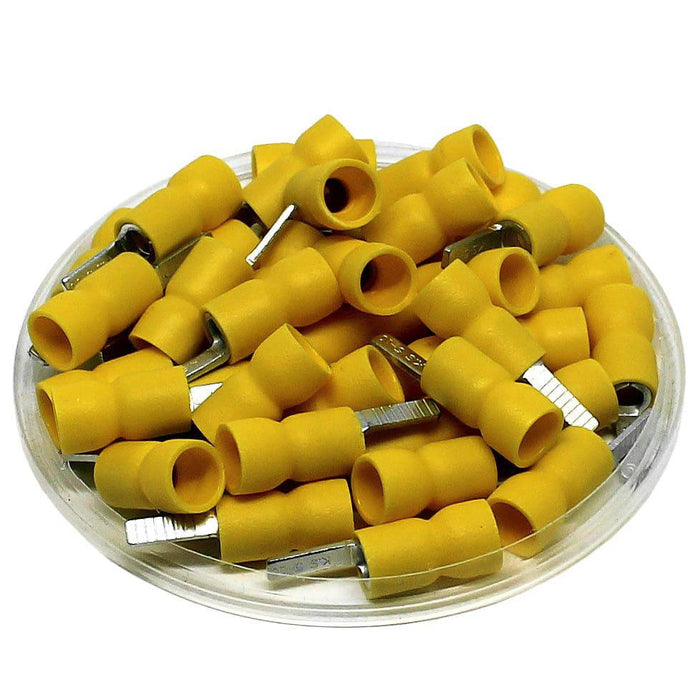

DBVE5-10 - 12 to 10 AWG Vinyl Insulated Easy Entry Flat Blade Terminals, Butted Seam, 100 Pieces
Precio original
$13.86
-
Precio original
$13.86
Precio original
$13.86
$13.86
-
$13.86
Precio actual
$13.86
SKU DBVE5-10
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
VINYL INSULATED FLAT BLADE TERMINALS
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as:
- Timers
- Motors
- Valves
- Relays
- Mechanical Switches
- Wire to Wire Harnesses
Dimensions & Features:
| Wire Range: | 12-10 AWG |
| Terminal Material: | Tin-Plated Copper |
| Seam: | Butted |
| Insulation: | Vinyl |
| Color: | Yellow |
| Max Electrical Rating: | 105oC |
| Max Electrical Voltage: | 600 Volts |
| Max Electrical Current: | 50AMP |
| T: | 1.0mm (0.04") |
| L: | 24.1mm (0.95") |
| F: | 10.0mm (0.39") |
| E: | 14.1mm (0.55") |
| W: | 2.8mm (0.11") |
| D: | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| UL Recognized: | Yes |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
