6.3mm Tab Quick Connects Male Screw PCB Terminals, Brass, 100 Pieces - DJ6126A-6.3x0.8

Precio original $5.22 - Precio original $5.22
Precio original
$5.22
$5.22 - $5.22
Precio actual $5.22
SKU DJ6126A-6.3x0.8
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

QUICK CONNECT SOLDER CONNECTORS

PCB quick connect male solder connector. The male tab fits into a female quick disconnect terminal. The solder tail attaches to your circuit board. Terminals with a built-in tab support prevent side-to-side motion during termination.

DIMENSIONS & FEATURES:

NEMA Tab: 6.3 x 0.8mm (0.250" x 0.031")
L: 30.5mm (0.75")
W: 6.3mm (0.25")
T: 0.8mm (0.031")
Material: Brass
CE Certified: Yes
RoHS Compliant: Yes

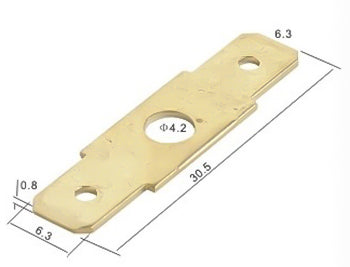

DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
