FD2008HD - Heavy Duty Crimping Tool - 22-08 AWG

Agotado
Precio original $69.00 - Precio original $69.00
Precio original
$69.00
$69.00 - $69.00
Precio actual $69.00
SKU FD2008HD
Disponibilidad:
Agotado
Quantity: 1 Piece
Need to fully certify that your tool is calibrated for optimal crimping? We offer an additional calibration here
Crimping Tool: Heavy Duty with Multiple Crimping Slots

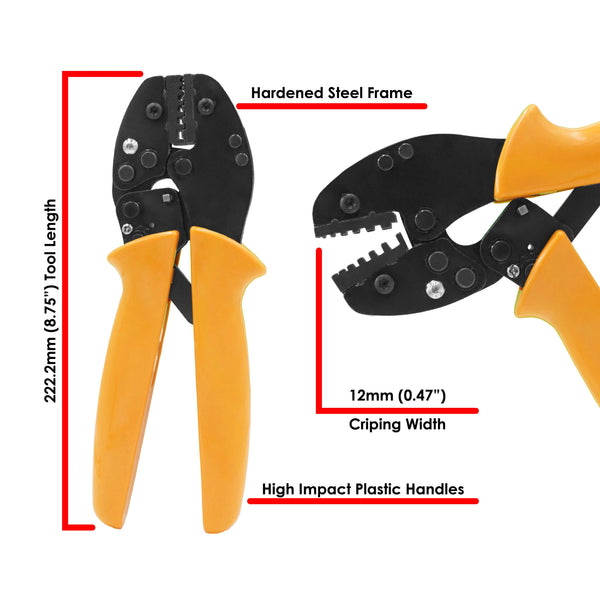

Dimensions & Features:

Crimping Range: 28 to 8AWG (0.14 to 10.00mm2)
Insulated/Uninsulated Ferrules: 22 to 8AWG (0.50 to 10.00mm2)
Twin Ferrules: 2x22 to 2x12AWG (2x0.50 to 2x4.00mm2)
Handles Span Fully Extended: 10.6" (269.2mm)
Crimping Mechanism: Ratchet
Crimping Profile: Trapezoidal
Tool Material: Hardened Steel
Handle Material: High Impact Plastic
Die Material: Not pressed, precision die cast, powdered metal
RoHS Compliant: Yes

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:

Videos

Click here to visit our YouTube channel!
