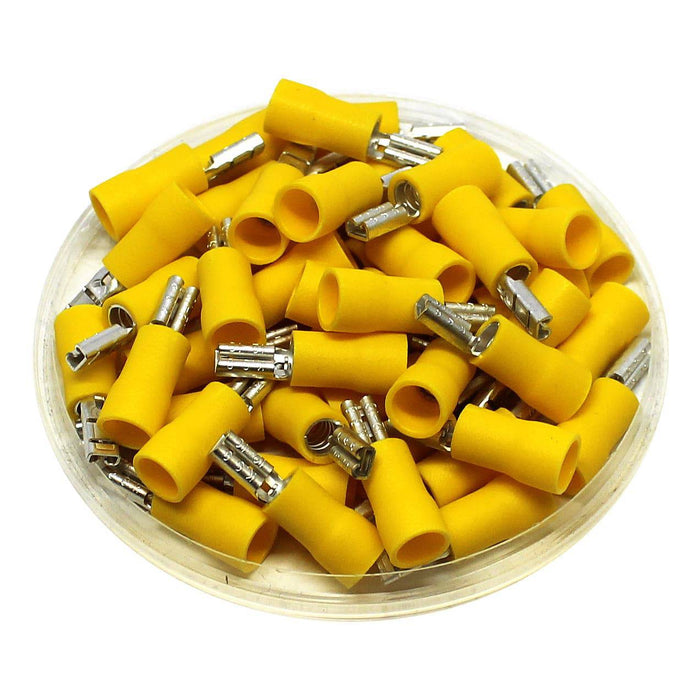

FDD5-110(5) - Vinyl Insulated Female Quick Disconnects - Double Crimp - 12-10 AWG

Precio original $15.87 - Precio original $15.87
Precio original
$15.87
$15.87 - $15.87
Precio actual $15.87
SKU FDD5-110(5)
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

Dimensions & Features:

Wire Size: 12-10 AWG
Color: Yellow
T: 0.4mm (0.02")
L: 22mm (0.87")
F: 6.5mm (0.26")
B: 13mm (0.51")
W: 3.2mm (0.13")
D: 6.2mm (0.24")
C: 3.4mm (0.13")
Nema Tab: 0.5 x 2.8mm (0.020 x 0.110")
Material: Tin Plated Brass
Insulation Material: Vinyl
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 24A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
