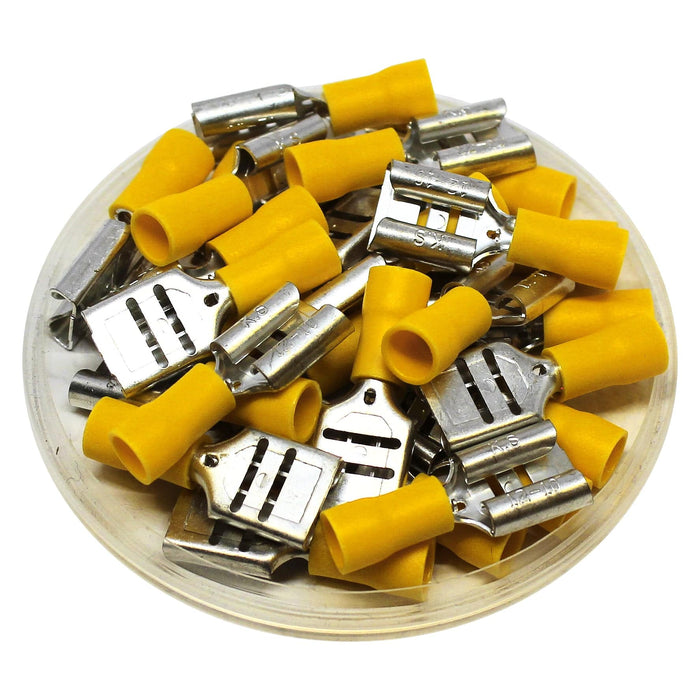

FDD5-375 - Vinyl Insulated Female Quick Disconnects - Double Crimp - 12-10 AWG
Precio original
$31.68
-
Precio original
$31.68
Precio original
$31.68
$31.68
-
$31.68
Precio actual
$31.68
SKU FDD5-375
Disponibilidad:
en stock, listo para ser enviado
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
Wire Size: | 12-10 AWG |
Color: | Yellow |
T: | 0.4mm (0.02") |
L: | 28.6mm (1.13") |
F: | 12mm (0.47") |
B: | 13mm (0.51") |
W: | 10mm (0.39") |
D: | 6.2mm (0.24") |
C: | 3.3mm (0.13") |
Nema Tab: | 1.2 x 9.4mm (0.047 x 0.370") |
Material: | Tin Plated Brass |
Insulation Material: | Vinyl |
Max Electrical Rating: | 105°C - 600 Volts |
Max Electrical Current: | 24A |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
