FDFD1-110(5) - 22-16AWG Fully Insulated Double Crimp Female Quick Disconnects - Vinyl - Ferrules Direct

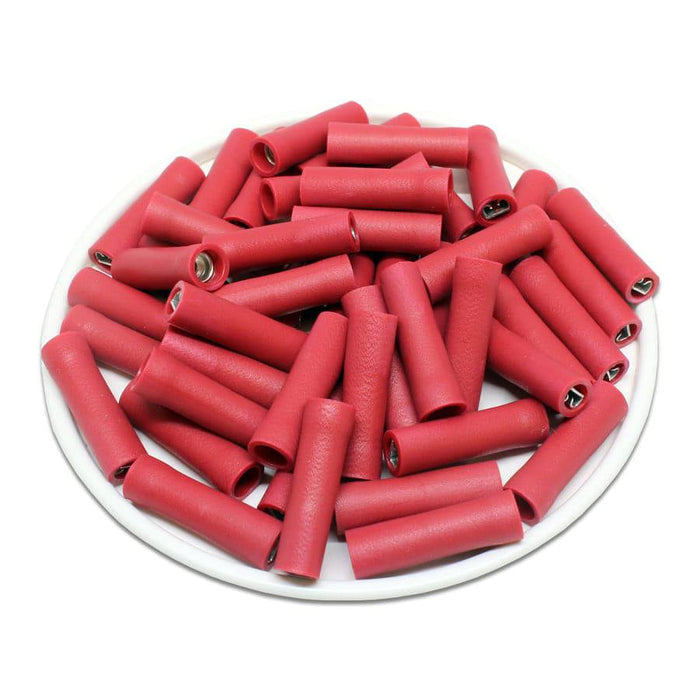

FDFD1-110(5) - 22 to 16 AWG Vinyl PVC Insulated Quick Disconnects, Female, Red, Fully Insulated, Double Crimp, 100 Pieces

$11.62 - $11.62
$11.62
$11.62 - $11.62
$11.62
SKU FDFD1-110(5)

Quantity: 100 Pieces

Disponibilidad:
en stock, listo para ser enviado
true

DIMENSIONS AND FEATURES

PART #

FDFD1-110(5)
RANGE: 22-16AWG PART DESCRIPTION Insulated Female Double Crimp Quick Disconnect Terminal
RATING: 3-10AMP - 105°C - 600V PROFILE: OVAL
NEMA TAB: .020x.110" (0.5x2.8mm) COLOR: RED
L: 19.0mm (.748") MATERIAL (INSULATION): Vinyl
F: 6.5mm (.256") MATERIAL (CONNECTOR): Brass and Copper
W: 3.2mm (.126") ELECTRICAL RATING: 105ºC 600 Volt Max
T: .3mm (.012") UL RECOGNIZED: YES
B: 10.5mm (.413") ROHS COMPLIANT: YES
D: 4.0mm (.157") CE CERTIFIED YES
C: 1.7mm (.067")
PRODUCT DESCRIPTION
  1. Made of tin plated brass and fully insulated with Vinyl.
  2. Create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation
  3. Double crimp copper sleeve provides maximum electrical conductivity, strengthens barrel and protects wire against stress and high vibration
  4. Tolerances may vary from item to item. Please consult the product's Technical Drawing.
