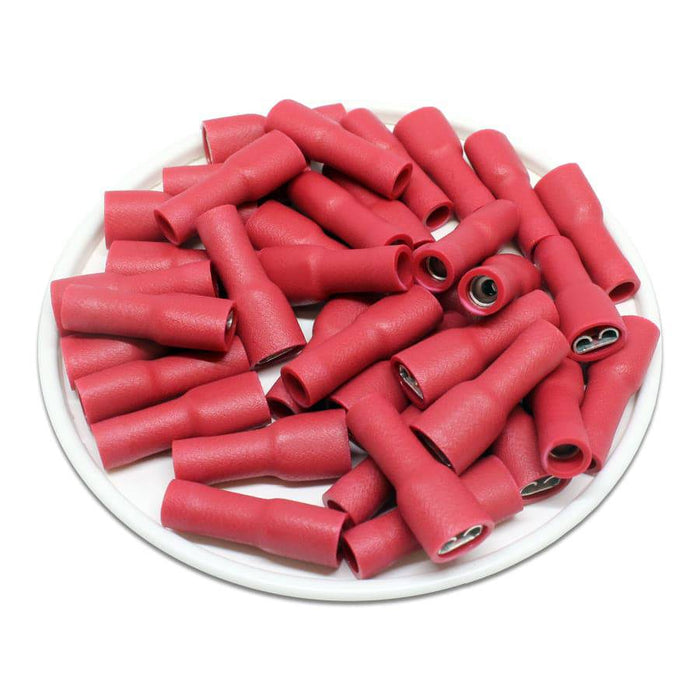

FDFD1-187(5) - 22-16AWG Fully Insulated Double Crimp Female Quick Disconnects - Vinyl - Ferrules Direct

FDFD1-187(5) - 22-16AWG Fully Insulated Double Crimp Female Quick Disconnects - Vinyl

$11.62 - $11.62
$11.62
$11.62 - $11.62
$11.62
SKU FDFD1-187(5)
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
true

DIMENSIONS AND FEATURES
Part #

FDFD1-187(5)
Range: 22-16AWG PART DESCRIPTION: Insulated Female Double Crimp Quick Disconnect Terminal
Rating: 3-10AMP - 105°C - 600V PROFILE: OVAL
NEMA TAB: .020x.187" (0.5x4.75mm) COLOR: RED
L 19.0mm(.748") MATERIAL (Insulation): Vinyl
F 6.5mm(.256") MATERIAL (Connector): Brass and Copper
W 3.2mm(.126") ELECTRICAL RATING: 105ºC 600 Volt Max
T .3mm(.012") UL RECOGNIZED: YES
B 10.5mm(.413") ROHS COMPLIANT: YES
D 4.0mm(.157") CE CERTIFIED: YES
C 1.7mm(.067")
PRODUCT DESCRIPTION
  1. Made of tin plated brass and fully insulated with Vinyl.
  2. Create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation
  3. Double Crimp copper sleeve provides maximum electrical conductivity, strengthens barrel and protects wire against stress and high vibration
  4. Tolerances may vary from item to item. Please consult the product's Technical Drawing.
