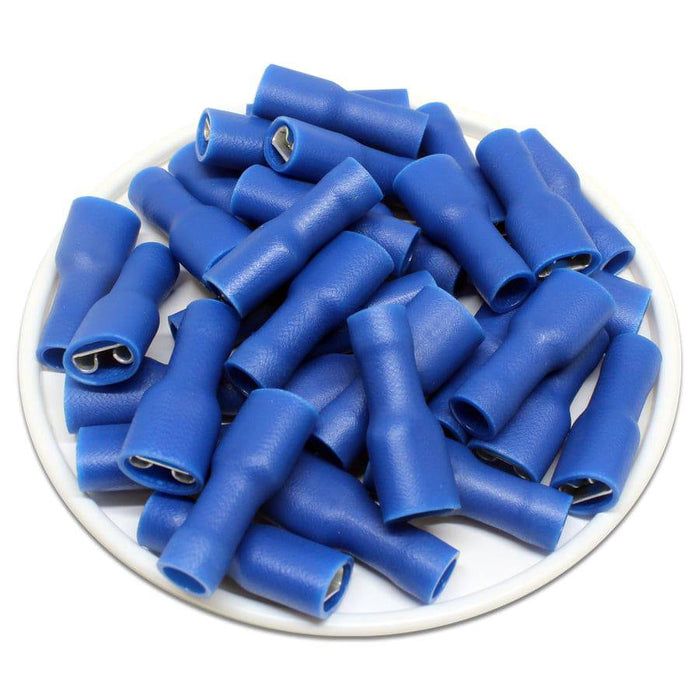

FDFD2-250 - 16-14AWG Fully Insulated Double Crimp Female Quick Disconnects - Vinyl

Precio original $0.00 - Precio original $14.19
Precio original
$14.19
$0.00 - $14.19
Precio actual $14.19
SKU FDFD2-250
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp copper sleeve provides maximum electrical conductivity, strengthens barrel, and protects wire against stress and high vibration.

Dimensions & Features:

Wire Size: 16-14 AWG
Color: Blue
W: 6.6mm (0.26")
F: 7.5mm (0.295")
L: 22.2mm (0.87")
B: 10.5mm (0.41")
D: 4.7mm (0.185")
C: 2.3mm (0.90")
Nema Tab: 0.8 x 6.3mm (0.032 x 0.250")
Terminal Material: Brass (with copper sleeve)
Insulation Material: Vinyl
Insulation Profile: Oval
Electrical Rating: 105°C - 600 Volts
Amp Rating: 15AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
