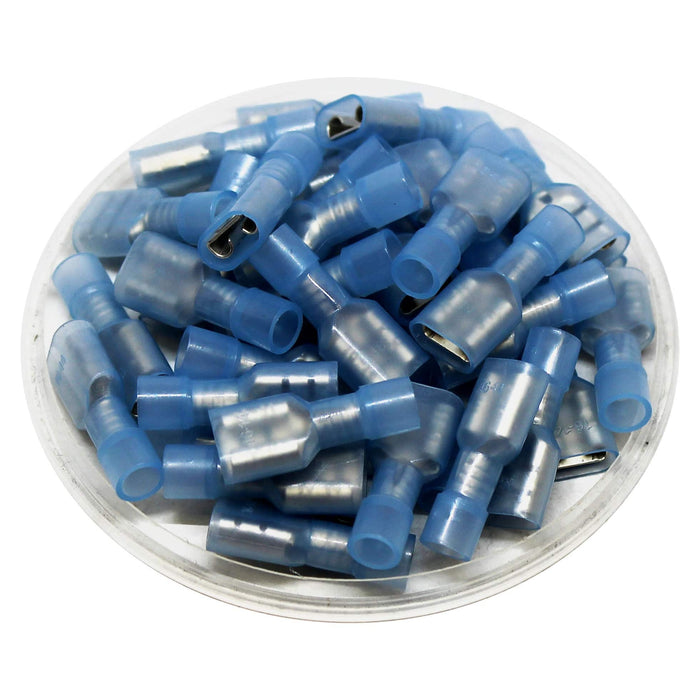

FDFN2-250 - FEMALE 16-14AWG Fully Insulated Quick Disconnect -Nylon

Precio original $0.00 - Precio original $9.84
Precio original
$9.84
$0.00 - $9.84
Precio actual $9.84
SKU FDFN2-250
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
Pack Quantity: 100 Pieces
Quick disconnects form a splice when fitted together and can be easily disconnected without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Size: 16-14 AWG
Color: Blue
W: 6.6mm (0.26")
F: 7.5mm (0.295")
L: 22mm (0.87")
B: 11mm (0.43")
D: 4.5mm (0.18")
T: 0.4mm (0.016")
Nema Tab: 0.8mm x 6.35mm (0.032" x 0.250")
Material: Tin Plated Brass
Insulation Material: Nylon
Insulation Profile: Oval
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 15 AMP
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
