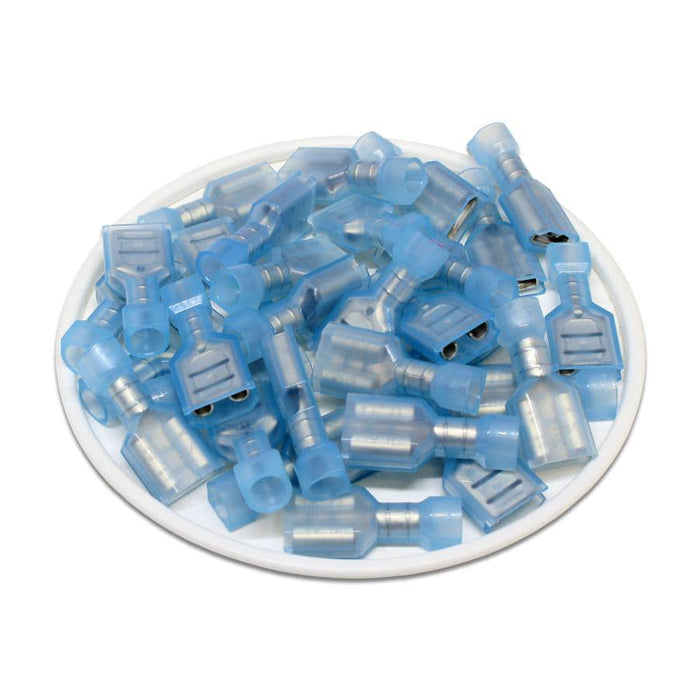

FDFNY2-250(A) - FEMALE 16-14AWG Fully Insulated - Nylon

Precio original $15.26 - Precio original $15.26
Precio original
$15.26
$15.26 - $15.26
Precio actual $15.26
SKU FDFNY2-250(A)
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Range: 16-14 AWG
T: 0.02" (0.4mm)
L: 0.83" (21.0mm)
F: 0.29" (7.6mm)
B: 0.39" (10.0mm)
W: 0.26" (6.6mm)
D: 0.17" (4.4mm)
C: 0.09" (2.3mm)
NEMA Tab: 0.8mm x 6.35mm (0.03" x 0.25")
Terminal Material: Tin-Plated Brass
Insulation Material: Nylon
Temperature Rating: 150°C - 300 Volts
Max Electrical Rating: 15 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References:

Cross Reference Parts:
Molex: 190030042, 190030040, 190030041, 19003-0042, 19003-0041, 19003-0040
