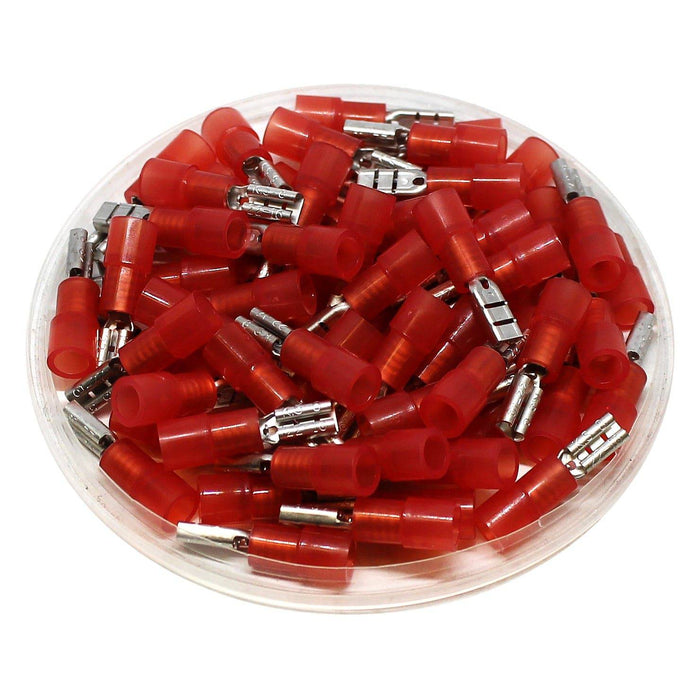

FDNY1-110(8) - 22-16AWG Female Quick Disconnects - Nylon
Precio original
$5.78
-
Precio original
$5.78
Precio original
$5.78
$5.78
-
$5.78
Precio actual
$5.78
SKU FDNY1-110(8)
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.8 x 2.8mm (0.032 x 0.11") |
| Temperature Rating: | 105°C |
| Voltage Rating: | 300 Volts |
| Max Electrical Current: | 10AMP |
| T: | 0.30mm (0.01") |
| L: | 19.6mm (0.77") |
| F: | 6.5mm (0.25") |
| B: | 11.0mm (0.43") |
| W: | 3.2mm (0.13") |
| D: | 4.0mm (0.16") |
| C: | 1.7mm (0.07") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
