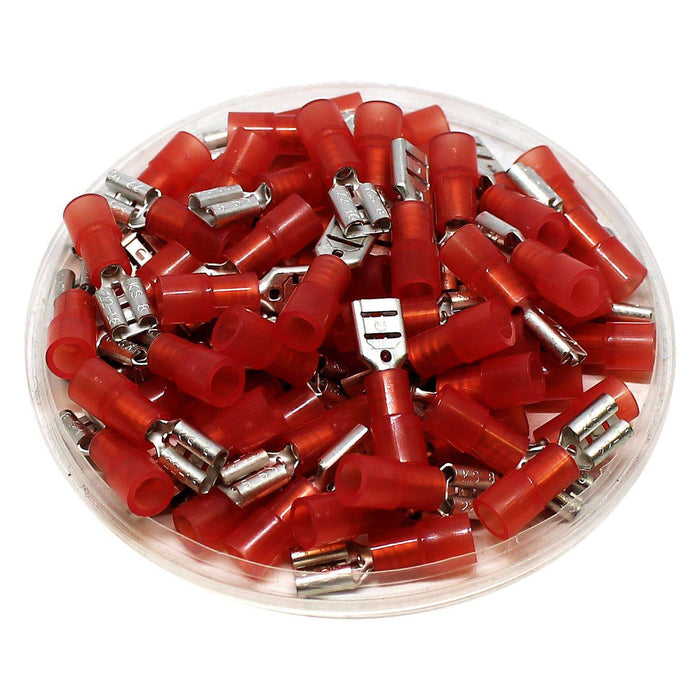

FDNY1-205(8) - 22-16AWG Female Quick Disconnects - Nylon

Precio original $6.73 - Precio original $6.73
Precio original
$6.73
$6.73 - $6.73
Precio actual $6.73
SKU FDNY1-205(8)
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
Terminal Insulation: Nylon
Terminal Material: Tin-Plated Brass
Nema Tab: 0.8 x 5.2mm (0.032 x 0.20")
Temperature Rating: 105°C
Voltage Rating: 300 Volts
Max Electrical Current: 10AMP
T: 0.35mm (0.01")
L: 19.5mm (0.77")
F: 5.8mm (0.23")
B: 11.0mm (0.43")
W: 5.7mm (0.22")
D: 4.0mm (0.16")
C: 1.7mm (0.07")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
