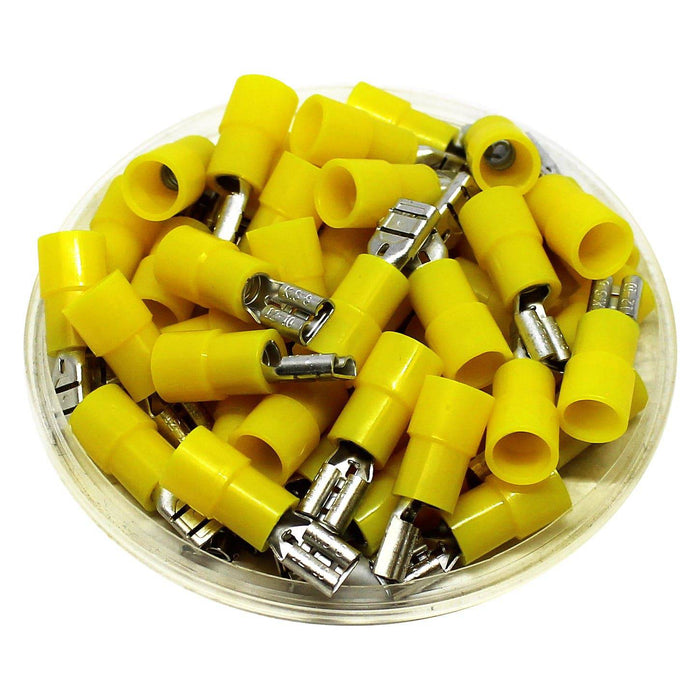

FDNY5-187(5) - 12-10AWG Female Quick Disconnects - Nylon
Precio original
$10.12
-
Precio original
$10.12
Precio original
$10.12
$10.12
-
$10.12
Precio actual
$10.12
SKU FDNY5-187(5)
Disponibilidad:
en stock, listo para ser enviado
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Wire Size: | 12-10 AWG |
Color: | Yellow |
T: | 0.35mm (0.01") |
L: | 22mm (0.87") |
F: | 6.5mm (0.26") |
B: | 13.0mm (0.51") |
W: | 5.0mm (0.20") |
D: | 6.3mm (0.25") |
C: | 3.4mm (0.13") |
Terminal Insulation: | Nylon |
Terminal Material: | Tin-Plated Brass |
Nema Tab: | 0.5mm x 4.75mm (0.020" x 0.187") |
Temperature Rating: | 105°C |
Voltage Rating: | 300 Volts |
Max Electrical Current: | 24AMP |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
