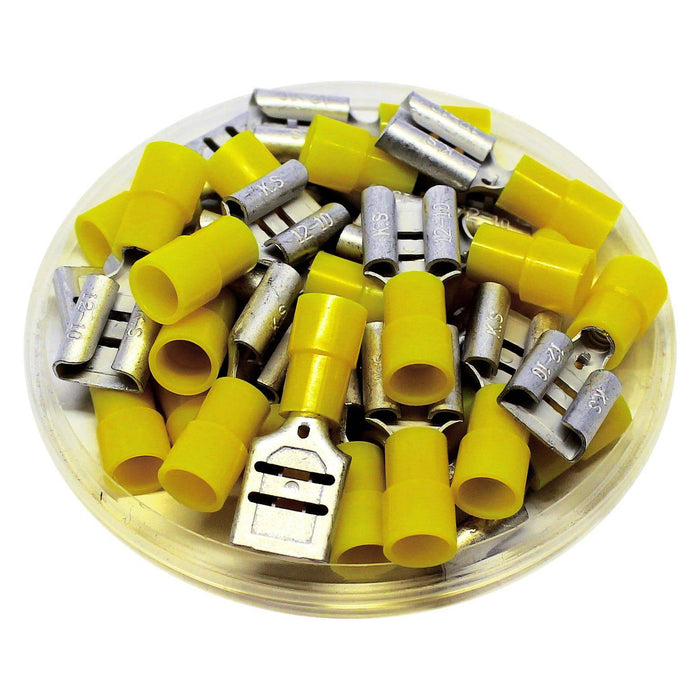

FDNY5-375 - 12-10AWG Female Quick Disconnects - Nylon

Precio original $26.38 - Precio original $26.38
Precio original
$26.38
$26.38 - $26.38
Precio actual $26.38
SKU FDNY5-375
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Size: 12-10 AWG
Color: Yellow
Terminal Insulation: Nylon
Terminal Material: Tin-Plated Copper
Nema Tab: 1.2 x 9.4mm (0.04 x 0.37")
Temperature Rating: 75°C
Voltage Rating: 300 Volts
Max Electrical Rating: 24 AMP
T: 0.50mm (0.02")
L: 28.5mm (1.12")
F: 12.0mm (0.47")
B: 13.0mm (0.51")
W: 10.0mm (0.39")
D: 6.3mm (0.25")
C: 3.4mm (0.13")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
