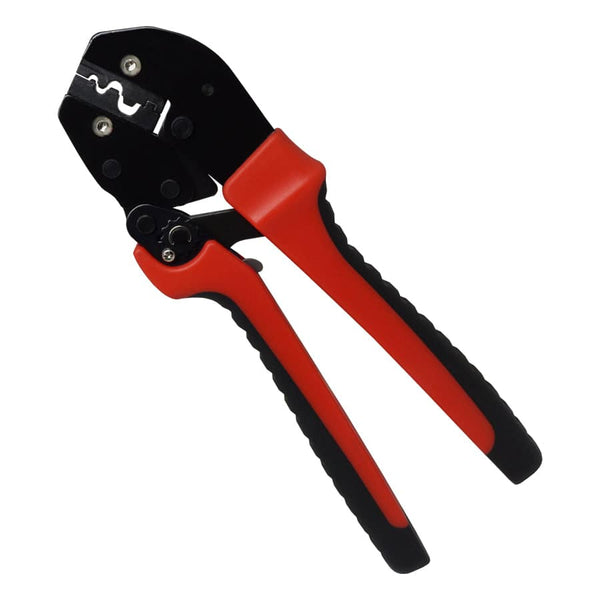

NON INSULATED TERMINALS CRIMPING TOOL

For 30+ years, Miromar tools have been the tools of choice for professional tradesmen and end users who are serious about their hand tools and demand quality at an affordable price. Made of quality materials and backed by our warranty and USA based customer service and technical assistance.

This tool is suitable for crimping non insulated terminals made of copper or steel. Terminals such as: non insulated ring terminals, non insulated spade terminals, non insulated fork terminals, non insulated bullet connectors, non insulated flat blade terminals, non insulated pin terminals, and many more!

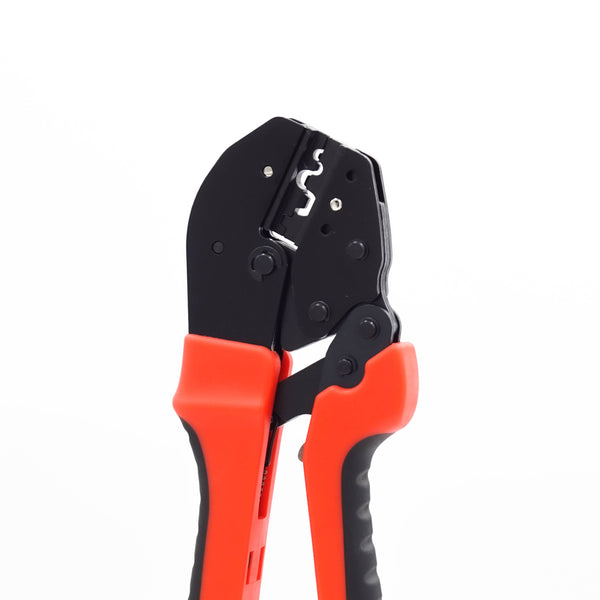

Please note that the installed die set on this tool has no markings. The crimping slots from the front of the jaw to the back are as follows:

• Slot #1: 22 to 18 AWG
• Slot #2: 16 to 14 AWG
• Slot #3: 12 to 10 AWG
• Slot #4: 8 AWG

Unsure if this tool will work for your application? Live chat with us today! We're here to answer any questions you might have!

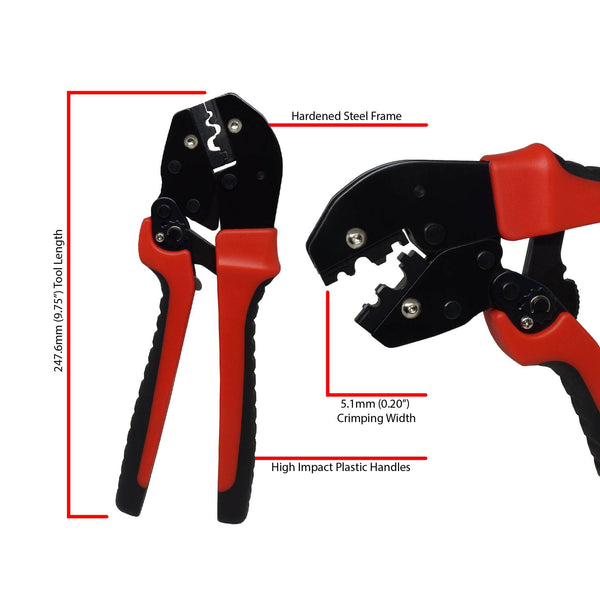

DIMENSIONS & FEATURES:

Wire Range:	22 to 8 AWG (0.50 to 10.00mm2)
Slots:	4
Tool Material:	Hardened Steel Frame
Tool Finish:	Burnished
Handle:	Ergonomic handles with comfort grips
Length:	10"
Crimping Mechanism:	Ratchet

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
