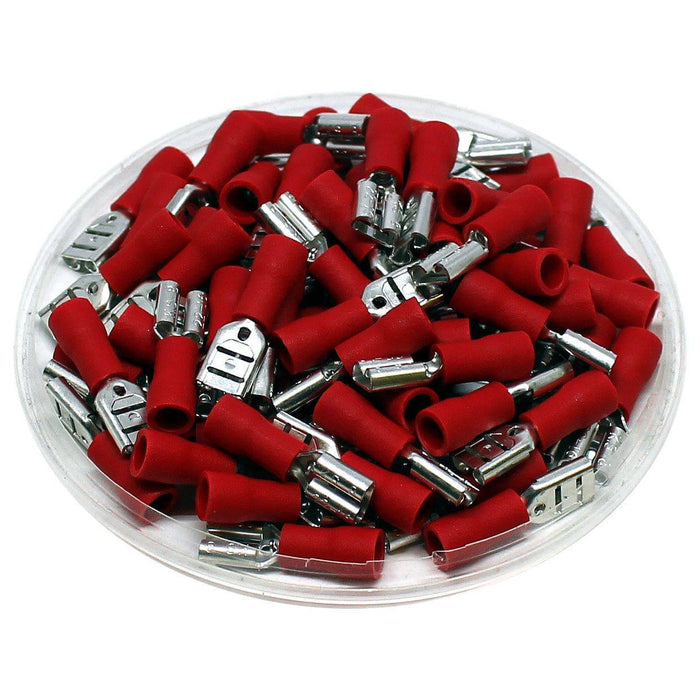

FDV1-187(8) - 22 to 16 AWG Vinyl PVC Insulated Quick Disconnects, Female, Red, Fully Insulated, 100 Pieces
Precio original
$4.95
-
Precio original
$4.95
Precio original
$4.95
$4.95
-
$4.95
Precio actual
$4.95
SKU FDV1-187(8)
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| T: | 0.4mm (0.01") |
| L: | 19mm (0.75") |
| F: | 6.4mm (0.25") |
| B: | 10mm (0.39") |
| W: | 5mm (0.20") |
| D | 4mm (0.16") |
| Nema Tab: | 0.8 x 4.75mm (.032 x .187") |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 300 Volts (75°C) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
