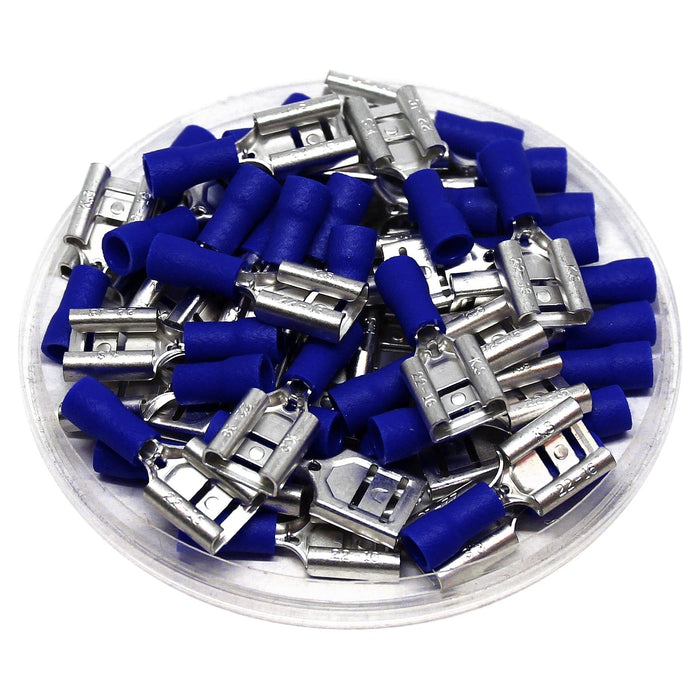

FDV2-375 - 16-14AWG Female Quick Disconnects - Vinyl
Precio original
$18.34
-
Precio original
$18.34
Precio original
$18.34
$18.34
-
$18.34
Precio actual
$18.34
SKU FDV2-375
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| Terminal Insulation: | Vinyl |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 1.2 x 9.4mm (0.047 x 0.37") |
| Temperature Rating: | 75°C |
| Voltage Rating: | 300 Volts |
| T: | 0.50mm (0.20") |
| L: | 25.5mm (1.00") |
| F: | 12.0mm (0.47") |
| B: | 10.0mm (0.39") |
| W: | 10.0mm (0.39") |
| D: | 4.5mm (0.18") |
| C: | 2.3mm (0.03") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
