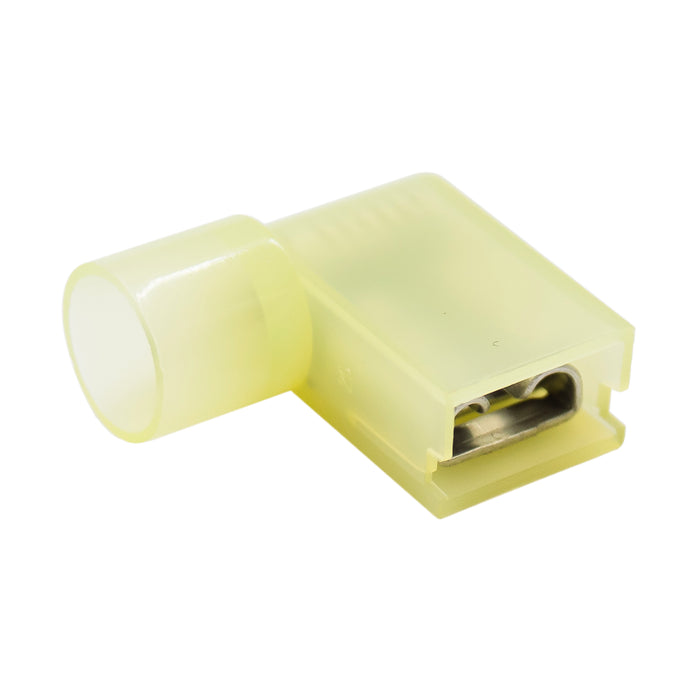

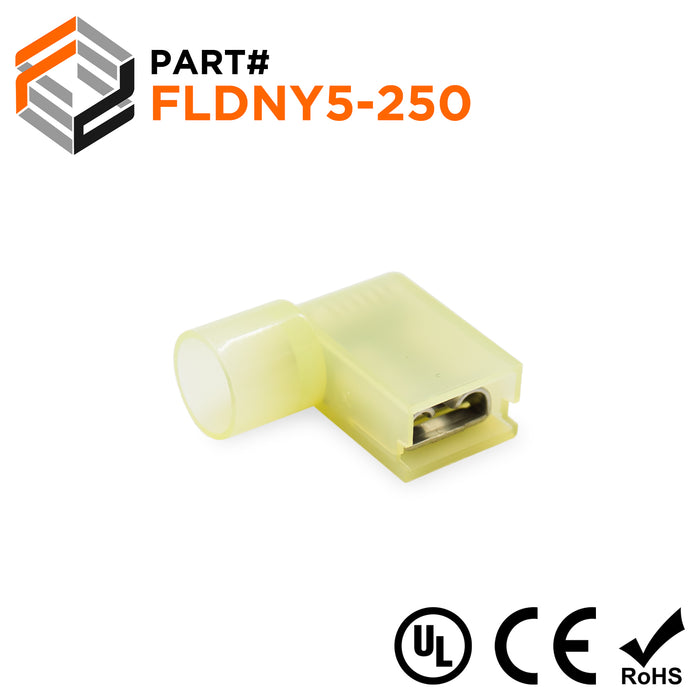

FLDNY5-250 - Nylon Insulated Flag Quick Disconnect - 12-10 AWG
Precio original
$20.10
-
Precio original
$20.10
Precio original
$20.10
$20.10
-
$20.10
Precio actual
$20.10
SKU FLDNY5-250

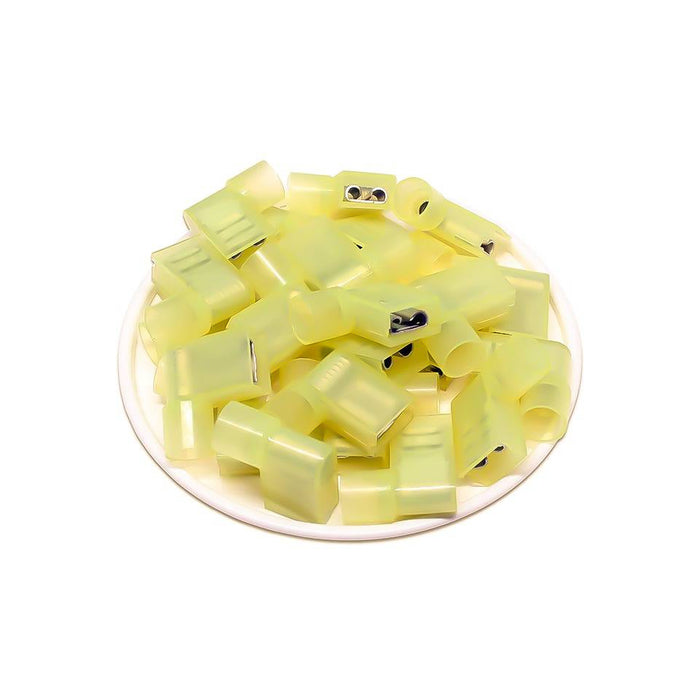

Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
Leidos: 20-72097
Molex: 19007-0040 - 19007-0041 - 19007-0053
Newark: 62M3162
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Temperature Rating: | 105°C - 300 Volts |
| Terminal Material: | Brass |
| Insulation Material: | Nylon |
| Color: | Yellow |
| Crimp: | Standard |
| NEMA Tab: | 0.8mm x 6.35mm (0.03" x 0.25") |
| L: | 16.5mm (0.65") |
| F: | 7.6mm (0.30") |
| W: | 6.6mm (0.26") |
| T: | 0.45mm (0.02") |
| D1: | 3.4mm (0.13") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Leidos: 20-72097
Molex: 19007-0040 - 19007-0041 - 19007-0053
Newark: 62M3162
