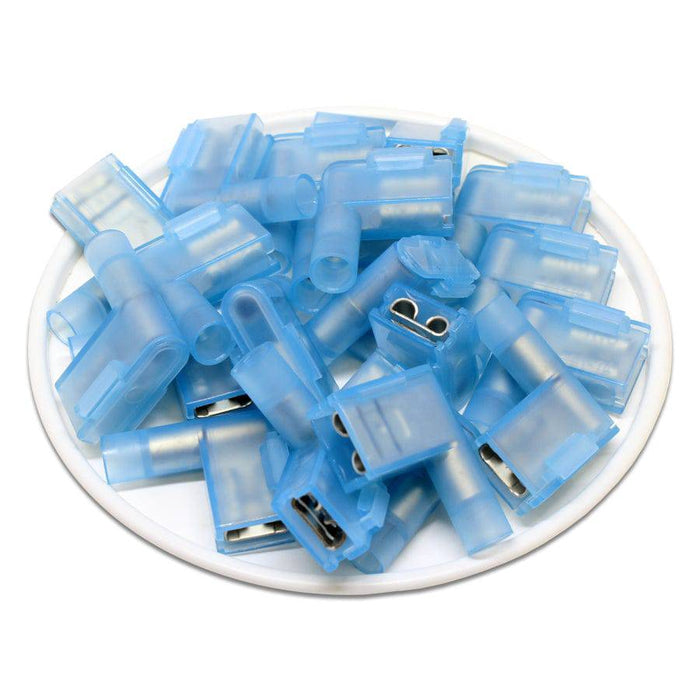

FLDNYDX2-250 - Double Crimp Nylon Insulated Quick Disconnects - 16-14 AWG
Precio original
$0.00
-
Precio original
$21.88
Precio original
$21.88
$0.00
-
$21.88
Precio actual
$21.88
SKU FLDNYDX2-250
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
Dimensions & Features:
Wire Size: | 16-14 AWG |
Color: | Blue |
Insulation Material: | Nylon |
Terminal Material: | Tin-Plated Brass |
Crimp: | Double |
Electrical Rating: | 105oC - 300 Volts |
Current Rating: | 10-15AMP |
Nema Tab: | 0.032" x 0.25" (0.8mm x 6.35mm) |
L: | 20.8mm (0.82") |
F: | 7.5mm (.30") |
W: | 6.6mm (.26") |
C: | 2.2mm (0.08") |
B: | 11.0mm (0.43") |
D: | 4.5mm (0.18") |
UL Recognized: | Yes |
RoHS Compliant: | Yes |
CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
