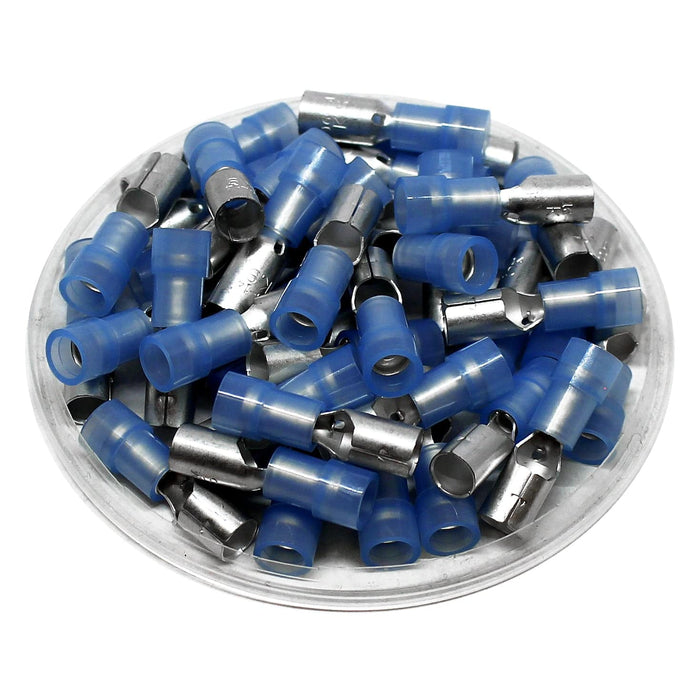

FRSNYD2-195 - Nylon Insulated Female Double Crimp Bullet Connectors - 16-14 AWG

Precio original $19.18 - Precio original $19.18
Precio original
$19.18
$19.18 - $19.18
Precio actual $19.18
SKU FRSNYD2-195
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Wire Range: 16-14 AWG
C: 0.09" (2.3mm)
L: 0.89" (22.5mm)
F: 0.28" (7.0mm)
B: 0.43" (11.0mm)
W: 0.19" (4.9mm)
D: 0.20" (5.0mm)
Terminal Material: Tin-Plated Brass
Insulation Material: Nylon
Insulation Color: Blue
Temperature Rating: 105oC
Max AMP Rating: 15 AMP
UL Recgonized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:

Videos

Click below to check out our YouTube channel!

COMPARE TO THESE PARTS:
