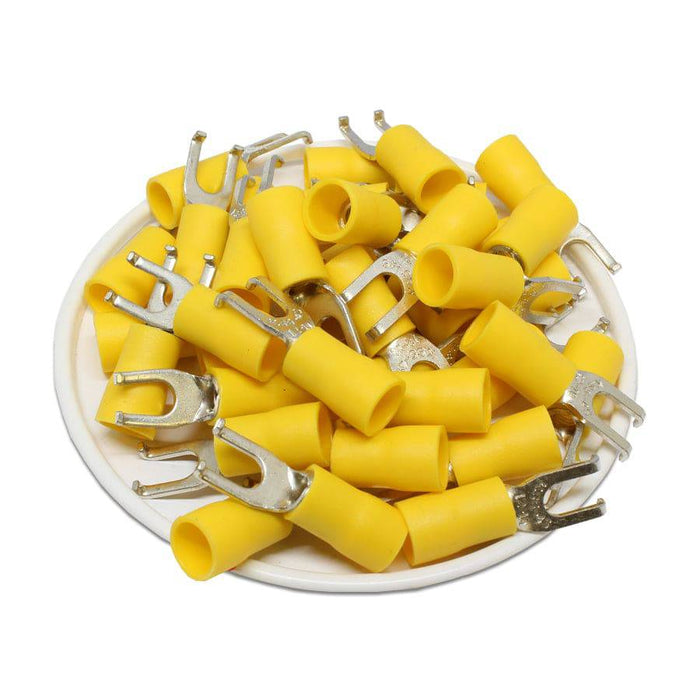

12 to 10 AWG Vinyl PVC Flange Spade Terminals, #8 Stud, Brazed Seam, 100 Pieces - FSVBS5-4

Precio original $0.00 - Precio original $22.17
Precio original
$22.17
$0.00 - $22.17
Precio actual $22.17
SKU FSVBS5-4
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
Pack Quantity: 100 Pieces
true

VINYL PVC INSULATED FLANGE SPADE TERMINALS

Vinyl Insulated (PVC) Flange Spade Terminals have a unique flange at the end of spades that allows for added security and grip. As with the standard spade terminals, they allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2



Dimensions & Features:

Wire Size: 12-10 AWG
Stud Size: #8
Seam: Brazed
Color: Yellow
Terminal Insulation: Vinyl
Terminal Material: Tin-Plated Copper
Max Electrical Temperature: 105oC
Max Electrical Rating: 600 Volts
Max Electrical Current: 50AMP
T: 1.0mm (0.04")
L: 25.5mm (1.00")
F: 6.2mm (0.51")
E: 13.0mm (0.51")
W: 7.6mm (0.30")
A: 1.5mm (0.06")
D: 6.4mm (0.25")
D1: 3.4mm (0.25")
D2: 4.3mm (0.17")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:
McMaster-Carr: 7869K28
Tyco AMP: 324172
