HC01B - 15/16"L x 1/2"W Nylon Saddle Tie Mounts: Tie Width: 3/16", Screw Width: 3/16", Black, 100 Pieces
Precio original
$5.18
-
Precio original
$5.18
Precio original
$5.18
$5.18
-
$5.18
Precio actual
$5.18
SKU HC01B
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado

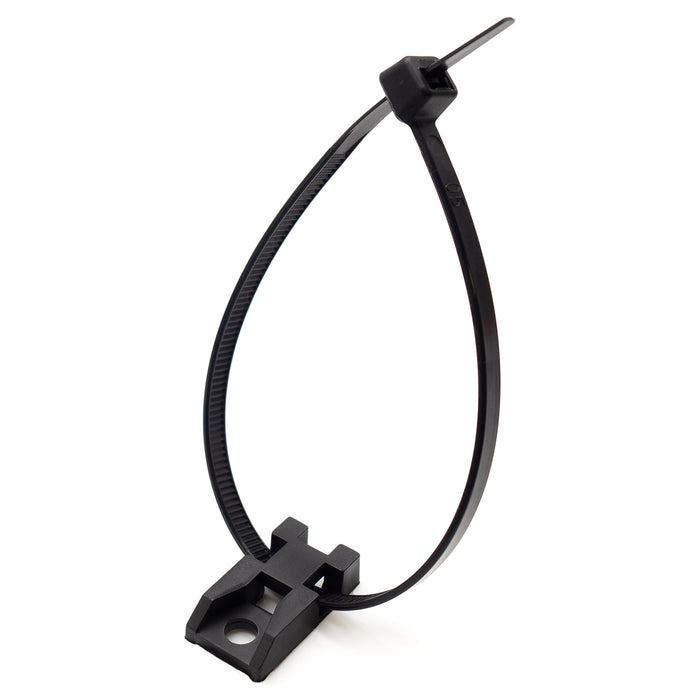

Saddle Tie Mounts provide a saddle for wire/cable runs. They are designed for maximum stability when securing bundles of wires/cables.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Size (LxWxH): | 0.94 x 0.51 x 0.24" |
| Color: | Black |
| L: | 24mm (0.94") |
| W: | 13mm (0.51") |
| H: | 6mm (0.24") |
| T (Cable Tie Slot Width): | 5.4mm (0.21") |
| B (Fixed Hole Size): | 4.6mm (0.18") |
| Mounting: | Screw Mounted |
| Material: | UL Approved 94UV-2 Nylon |
| Environment: | Indoor |
| Flammability (Fire Rating): |
UL 94V-2 |
| Gamma Radiation: | 1x10 Rads |
| Temp Rating: | -400°F to 185°F (-240°C to 85°C) |
| UL Recognized: | No |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
