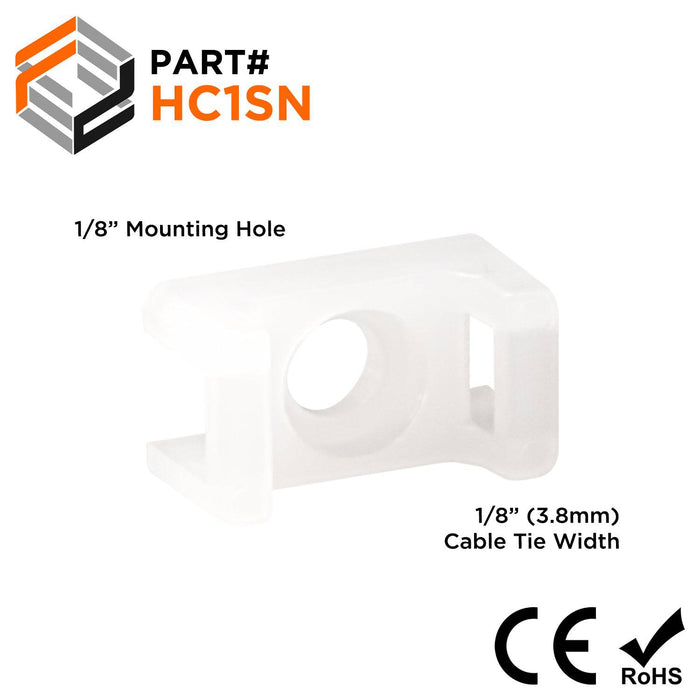

1/2"L x 1/4"W Nylon Saddle Tie Mounts: Tie Width: 1/8", Screw Width: 1/8", Natural, 100 Pieces

Precio original $3.52 - Precio original $3.52
Precio original
$3.52
$3.52 - $3.52
Precio actual $3.52
SKU HC1SN
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

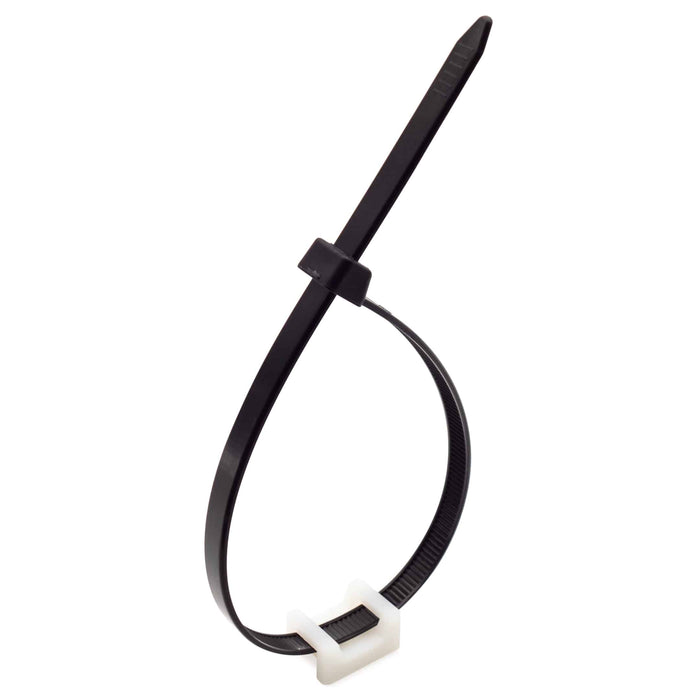

Saddle Tie Mounts provide a saddle for wire/cable runs. They are designed for maximum stability when securing bundles of wires/cables.

Dimensions & Features:

Size (LxWxH): 0.50 x 0.28 x 0.22"
Color: Natural
H: 5.7mm (0.22")
L: 12.6mm (0.50")
W: 7mm (0.28")
T (Cable Tie Slot Width): 3.8mm (0.15")
B (Fixed Hole Size): 3.3mm (0.13")
Mounting: Screw Mounted
Material: UL Approved 94UV-2 Nylon
Environment: Indoor
Flammability: UL 94V-2
Gamma Radiation: 1x10 Rads
Temp Rating: -400°F to 185°F (-240°C to 85°C)
UL Recognized: No
RoHS Compliant: Yes
CE Certified: Yes

Technical Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
