15/16"L x 5/8"W Nylon Saddle Tie Mounts - Tie Width: 3/8", Screw Width: 1/4", Natural, 100 Pieces

Precio original $7.14 - Precio original $7.14
Precio original
$7.14
$7.14 - $7.14
Precio actual $7.14
SKU HC2N
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

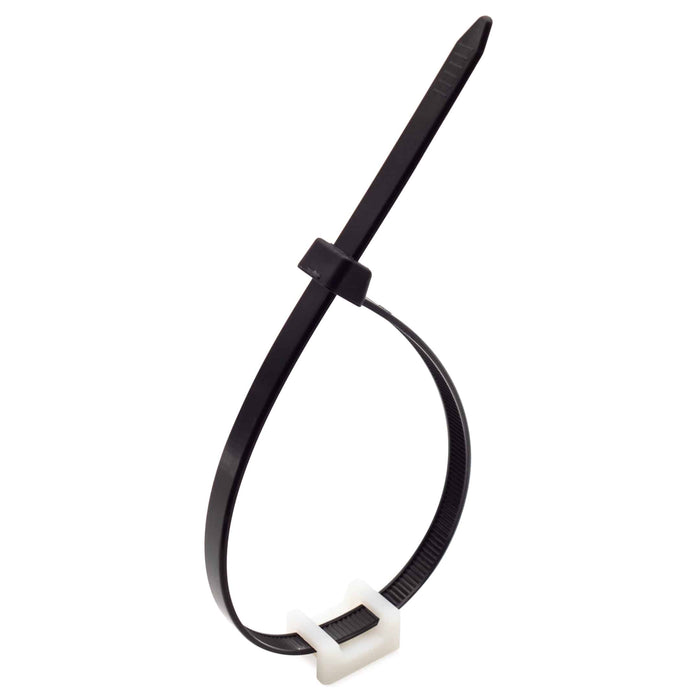

Saddle Tie Mounts provide a saddle for wire/cable runs. They are designed for maximum stability when securing bundles of wires/cables. This part was formerly known as HC2AN.

Dimensions & Features:

Nominal Dimensions: 15/16"L x 5/8"W x 3/8"H
Color: Natural
L: 23mm (0.91")
W: 16mm (0.63")
H: 10mm (0.39")
T (Cable Tie Slot Width): 9.2mm (0.36")
B (Fixed Hole Size): 6.0mm (0.24")
Mounting: Screw Mounted
Material: UL Approved 94UV-2 Nylon
Environment: Indoor
Flammability (Fire Rating): UL 94V-2
Gamma Radiation: 1x10 Rads
Temp Rating: -400°F to 185°F (-240°C to 85°C)
UL Recognized: No
RoHS Compliant: Yes
CE Certified: Yes

Technical Drawing:

Cross References

Cross Reference Parts:
None
