HC4N - 1-1/8"L x 9/16"W Nylon Saddle Tie Mounts - Tie Width: 3/8", Screw Width: 3/16", Natural, 100 Pieces
Precio original
$8.00
-
Precio original
$8.00
Precio original
$8.00
$8.00
-
$8.00
Precio actual
$8.00
SKU HC4N
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
Saddle Tie Mounts provide a saddle for wire/cable runs. They are designed for maximum stability when securing bundles of wires/cables.
This is a suitable replacement for our previous stock #: HC3N. Please review specs below.

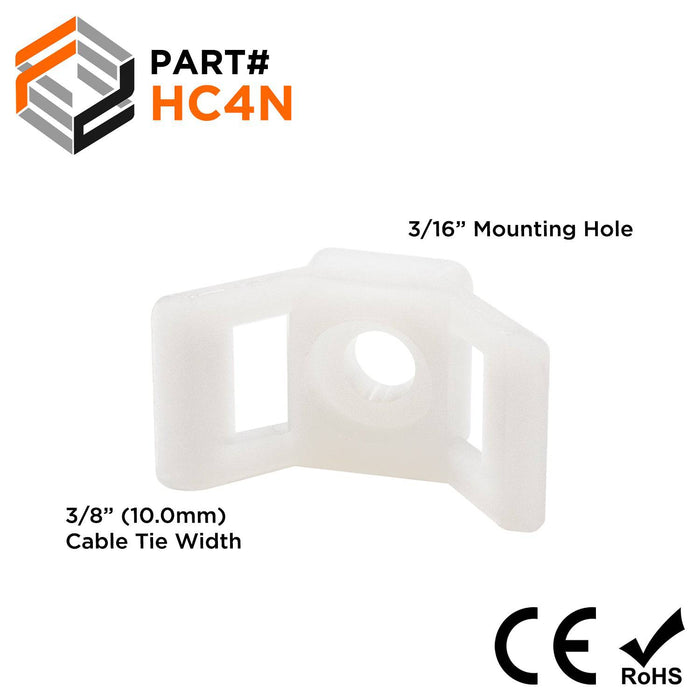

Dimensions & Features:
| Size (LxWxH): | 1.14 x 0.59 x 0.47" |
| Color: | Natural |
| H: | 12mm (0.47") |
| L: | 29mm (1.14") |
| W: | 15mm (0.59") |
| T (Cable Tie Slot Width): | 10mm (0.39") |
| B (Fixed Hole Size): | 5.2mm (0.20") |
| Material: | UL Approved Nylon 66, 94V-2 |
| Flammability (Fire Rating): | UL 94V-2 |
| Gamma Radiation: | 1x10 Rads |
| Temp Rating: | -400°F to 185°F (-240°C to 85°C) |
| UL Approved: | No |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
