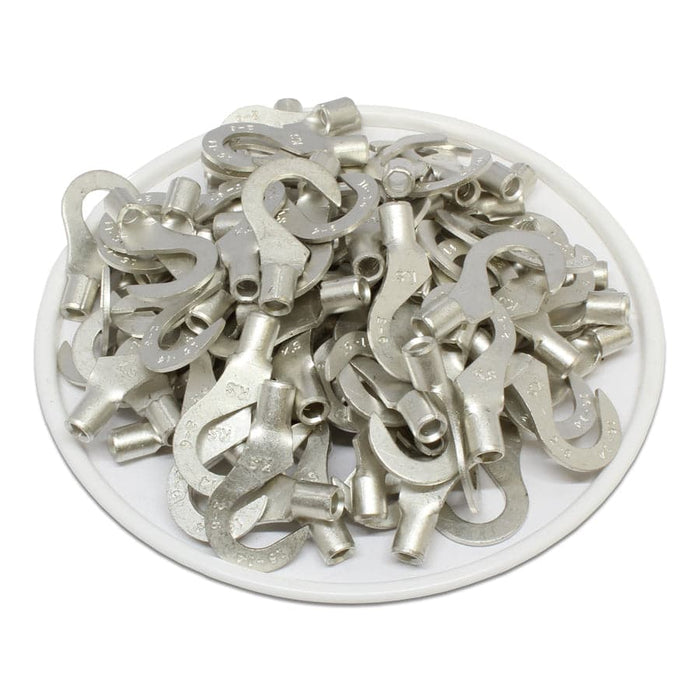

16-14 AWG Non Insulated Hook Terminals, 1/4" Stud, Brazed Seam, UL, - HNB2-6

Precio original $16.10 - Precio original $16.10
Precio original
$16.10
$16.10 - $16.10
Precio actual $16.10
SKU HNB2-6
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

NON INSULATED HOOK TERMINALS

Hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.

INFORMATION & SPECIFICATIONS:

Wire Range: 16-14 AWG
T: 0.03" (0.8mm)
L: 0.85" (21.8mm)
F: 0.43" (11.0mm)
E: 0.19" (4.8mm)
W: 0.47" (12.0mm)
D: 0.16" (4.1mm)
D1: 0.09" (2.3mm)
D2: 0.25" (6.4mm)
Terminal Material: Tin-Plated Copper
Stud Size: 1/4 Stud
Seam: Brazed
Temperature Rating: 105oC - 600 Volts
AMP Rating: 9-17AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:
