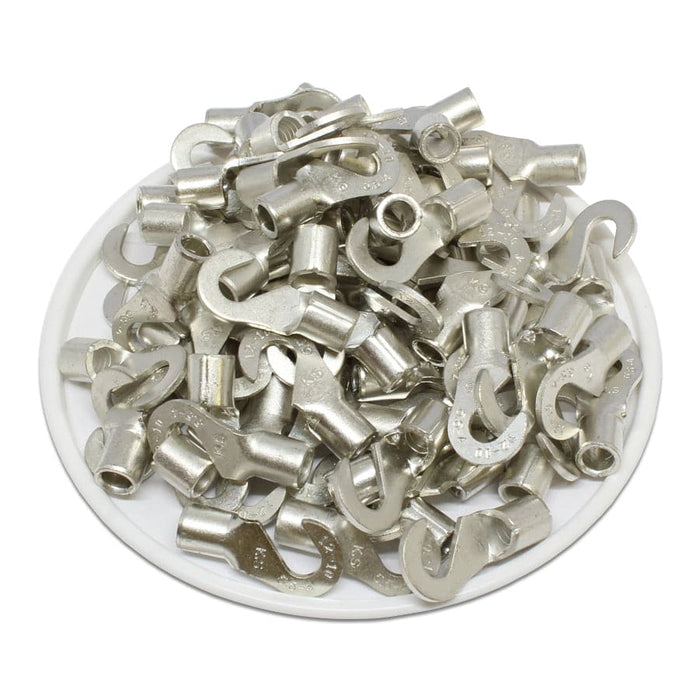

12-10 AWG Non Insulated Hook Terminals, #8 Stud, Brazed Seam, UL, - HNB5-4

Precio original $21.56 - Precio original $21.56
Precio original
$21.56
$21.56 - $21.56
Precio actual $21.56
SKU HNB5-4
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

NON INSULATED HOOK TERMINALS

Hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.

INFORMATION & SPECIFICATIONS:

Wire Range: 12-10 AWG
T: 0.03" (1.00mm)
L: 0.88" (19.8mm)
F: 0.37" (9.5mm)
E: 0.23" (6.0mm)
W: 0.37" (9.5mm)
D: 0.22" (5.6mm)
D1: 0.13" (3.4mm)
D2: 0.16" (4.3mm)
Terminal Material: Tin-Plated Copper
Stud Size: #8 Stud
Seam: Brazed
Temperature Rating: 105oC - 600 Volts
AMP Rating: 9-17AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:
