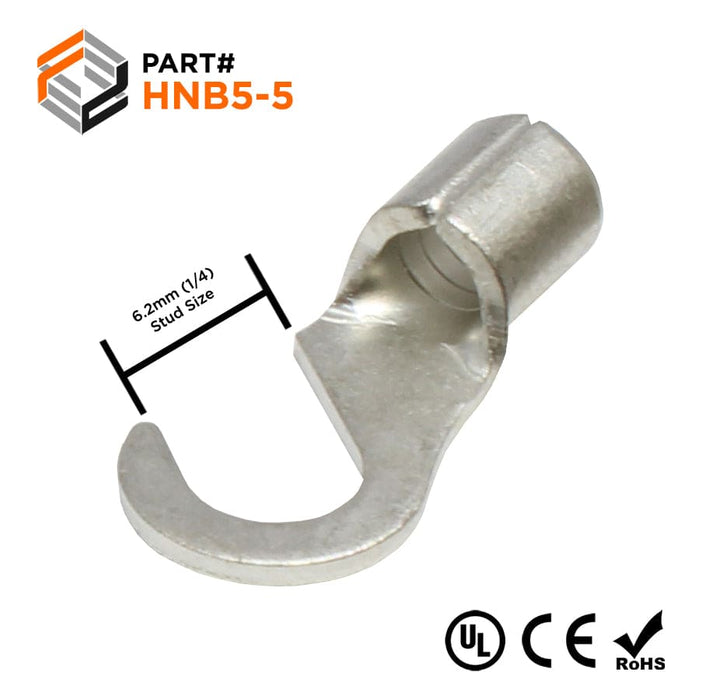

HNB5-5 - 12 to 10 AWG Non Insulated Hook Terminals, #10 Stud, UL Recognized, 100 Pieces
Precio original
$28.22
-
Precio original
$28.22
Precio original
$28.22
$28.22
-
$28.22
Precio actual
$28.22
SKU HNB5-5
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
NON INSULATED HOOK TERMINALS
Hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.
INFORMATION & SPECIFICATIONS:
| Wire Range: | 12 to 10 AWG |
| T: | 0.03" (1.00mm) |
| L: | 0.88" (22.5mm) |
| F: | 0.40" (10.3mm) |
| E: | 0.23" (6.0mm) |
| W: | 0.47" (12.0mm) |
| D: | 0.22" (5.6mm) |
| D1: | 0.13" (3.4mm) |
| D2: | 0.209" (5.3mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | #10 Stud |
| Seam: | Brazed |
| Temperature Rating: | 105oC - 600 Volts |
| AMP Rating: | 9-17AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
McMaster-Carr: 7472K73
