MDD1-187(5) - MALE - 22-16AWG Double Crimp Quick Disconnects - Vinyl - Ferrules Direct

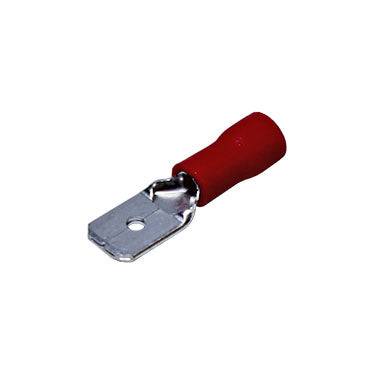

MDD1-187(5) - 22 to 16 AWG Vinyl PVC Insulated Quick Disconnects, Male, Fully Insulated, Double Crimp, Red, 100 Pieces

$8.51 - $8.51
$8.51
$8.51 - $8.51
$8.51
SKU MDD1-187(5)

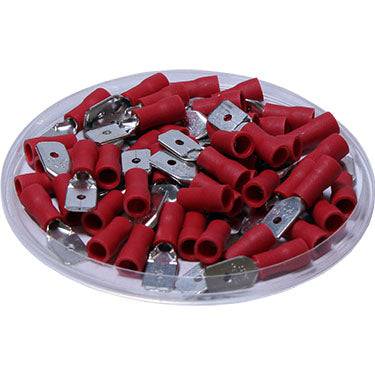

Quantity: 100 Pieces

Disponibilidad:
en stock, listo para ser enviado
true
  • Made of tin plated brass and insulated with Vinyl.
  • Create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
  • Double Crimp copper sleeve provides maximum electrical conductivity, strengthens barrel and protects wire against stress and high vibration.
  • Tolerances may vary from item to item. Please consult the product's Technical Drawing.


    • Dimensions & Features:

    Wire Size: 22-16 AWG
    Color: Red
    Terminal Material: Tin-Plated Brass
    Terminal Insulation: Vinyl
    Voltage Rating: 600 Volts
    AMP Rating: 3-10AMP
    Temperature Rating: 105oC
    NEMA Tab: 0.02" X 0.18" (0.5mm X 4.75mm)
    L: 19.8mm (0.78")
    F: 6.5mm (0.25")
    W: 4.8mm (0.18")
    T: 0.5mm (0.20")
    B: 10.5mm (0.41")
    D: 4.0mm (0.15")
    C: 1.7mm (0.06")
    UL Recognized: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:

    Cross References

    Cross Reference Parts:
    None:

    Documents

    Click to view product spec sheet:
