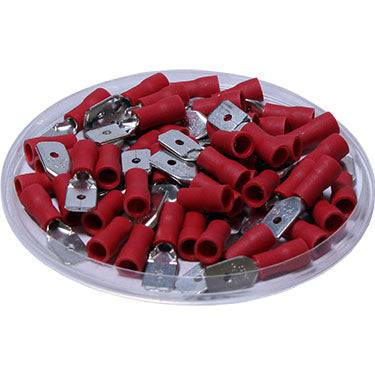

MDD1-250 - MALE - 22-16AWG Double Crimp Quick Disconnects - Vinyl

Precio original $10.58 - Precio original $10.58
Precio original
$10.58
$10.58 - $10.58
Precio actual $10.58
SKU MDD1-250
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
true
  • Made of tin plated brass and insulated with Vinyl.
  • Create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation
  • Double Crimp copper sleeve provides maximum electrical conductivity, strengthens barrel and protects wire against stress and high vibration
  • Tolerances may vary from item to item. Please consult the product's Technical Drawing.


  • Dimensions & Features:

    Wire Range: 22-16 AWG
    L: 21.8mm (0.85")
    F: 7.7mm (0.30")
    W: 6.3mm (0.25")
    T: 0.4mm (0.16")
    B: 10.5mm (0.41")
    D: 4.0mm (0.16")
    C: 1.7mm (0.06")
    Nema Tab: 0.03" X 0.25" (0.8mm X 6.3mm)
    Terminal Material: Brass and Copper
    Insulation Material: Vinyl
    Color: Red
    AMP Rating: 3-10 AMP
    Electrical Rating: 105oC - 600 Volts
    UL Recognized: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:

    Cross References

    Cross Reference Parts:

    None

    Documents

    Click to view the product spec sheet:
